1210 22uF ±10% 4V

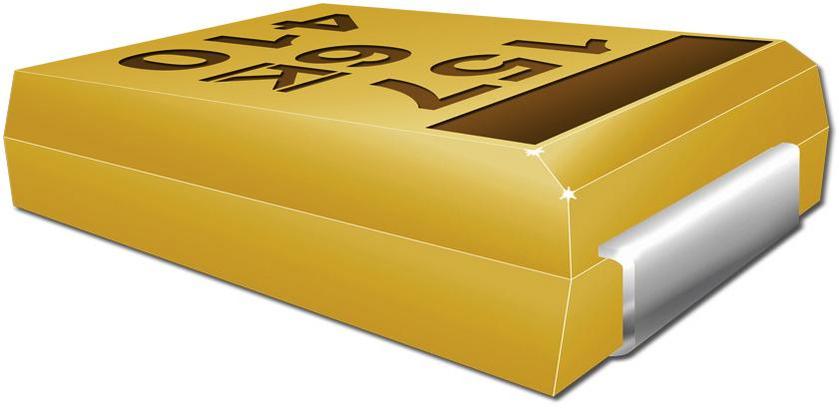

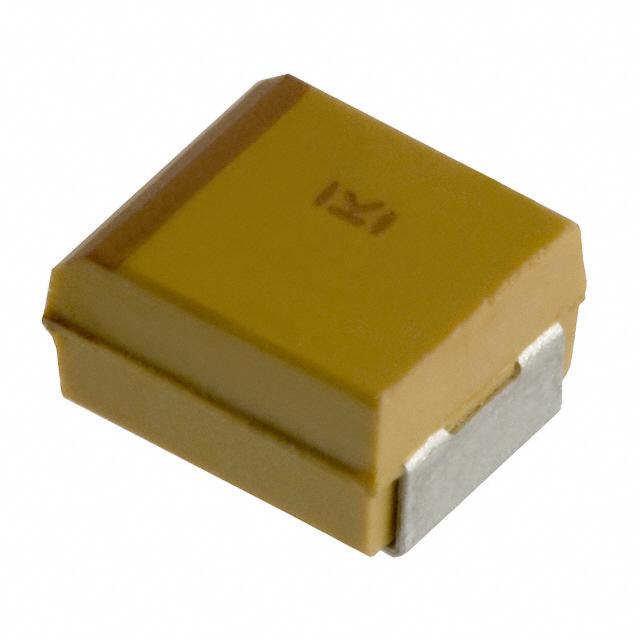

The higher stability of this solid tantalum capacitor from Kemet compared to its aluminum counterpart allows it to keep its properties through a variety of operating conditions. It can withstand a voltage of 4 VDC. Its leakage current is 0.9 μA. This solid capacitor has a maximum operating temperature of 125 °C. It has a tolerance of 10%. This product is 3.5 mm long, 1.9 mm tall and 2.8 mm deep. Its capacitance value is 22uF.
额定电压DC 4.00 V
电容 22 µF
等效串联电阻ESR 3.5 Ω
容差 ±10 %
产品系列 T491
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 4 V
安装方式 Surface Mount
引脚数 2
封装公制 3528-21
封装 3528
长度 3.5 mm
宽度 2.8 mm
高度 1.9 mm
封装公制 3528-21
封装 3528
介质材料 Tantalum
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 2000
寿命（小时） 2000h @125℃
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
T491B226K004AT KEMET Corporation 基美 | 当前型号 | 当前型号 |
T491B226K004AS 基美 | 功能相似 | T491B226K004AT和T491B226K004AS的区别 |
