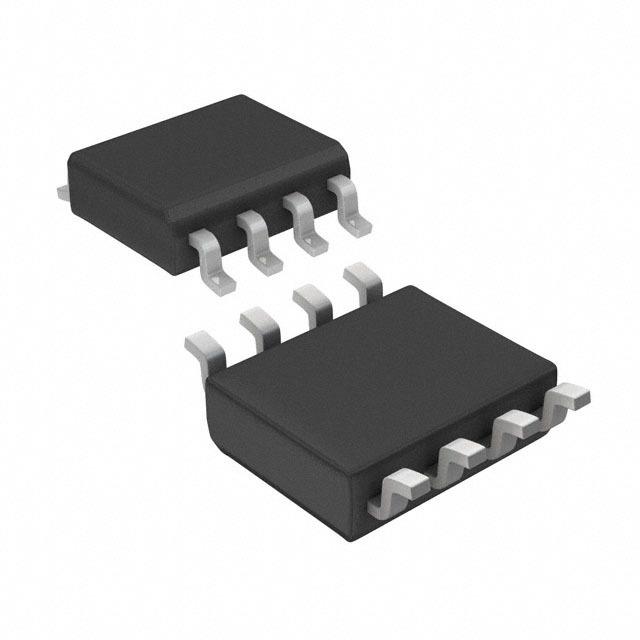

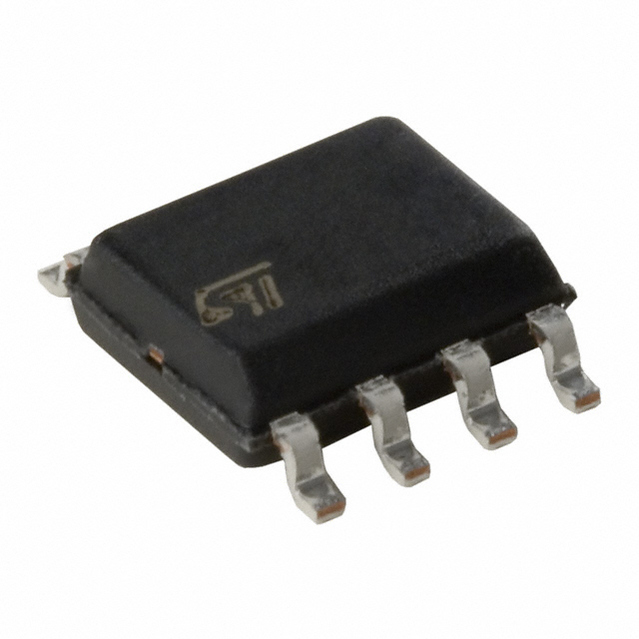

TS27L2AC 系列 16 V 100 KHz 低功耗 CMOS 双通道 运算放大器 - SOIC-8
CMOS 放大器 2 电路 - 8-SOIC
得捷:
IC CMOS 2 CIRCUIT 8SOIC
立创商城:
TS27L2ACDT
艾睿:
Does your project require any signal processing circuits, control circuits, or instrumentation? Then this general purpose amplifier TS27L2ACDT OP amp from STMicroelectronics will ensure you get the most versatility to implement them all! This op amp has a temperature range of 0 °C to 70 °C. It has 2 channels per chip. This device uses a single power supply. This device utilizes CMOS technology.
安富利:
OP Amp Dual GP 16V 8-Pin SO N T/R
Chip1Stop:
OP Amp Dual GP 16V 8-Pin SO N T/R
Verical:
Op Amp Dual Low Power Amplifier 16V 8-Pin SO N T/R
儒卓力:
**2xOP 0.1MHz 0,04V/µs SO8 _SMD **
输出电流 45mA @10V
供电电流 10 µA
电路数 2
共模抑制比 65 dB
转换速率 40.0 mV/μs
增益频宽积 0.1 MHz
输入补偿电压 900 µV
输入偏置电流 1 pA
工作温度Max 70 ℃
工作温度Min 0 ℃
增益带宽 0.1 MHz
共模抑制比Min 65 dB
安装方式 Surface Mount
引脚数 8
封装 SOIC-8
封装 SOIC-8
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TS27L2ACDT ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
TS27L2ACD 意法半导体 | 类似代替 | TS27L2ACDT和TS27L2ACD的区别 |
OPA2342UA 德州仪器 | 功能相似 | TS27L2ACDT和OPA2342UA的区别 |
TLC27L2ACD 德州仪器 | 功能相似 | TS27L2ACDT和TLC27L2ACD的区别 |
