TS93 系列 SOT23-5L 输出 轨对轨 微功率 运算放大器
The TS93x single, dual and quad series are operational amplifiers that can operate with voltages as low as 2.7 V and reach a 2.9 Vpp output swing with RL = 100 kΩ when supplied at 3 V.
Offering a typical consumption of only 20 μA, these devices are particularly well suited to battery powered applications.

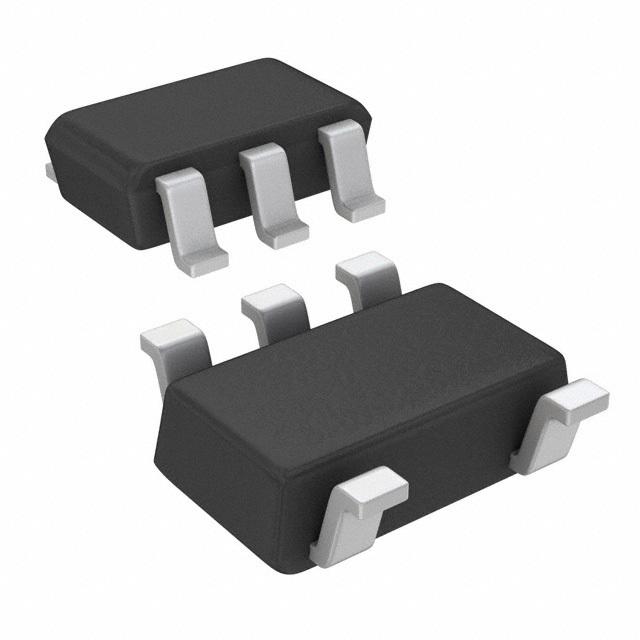

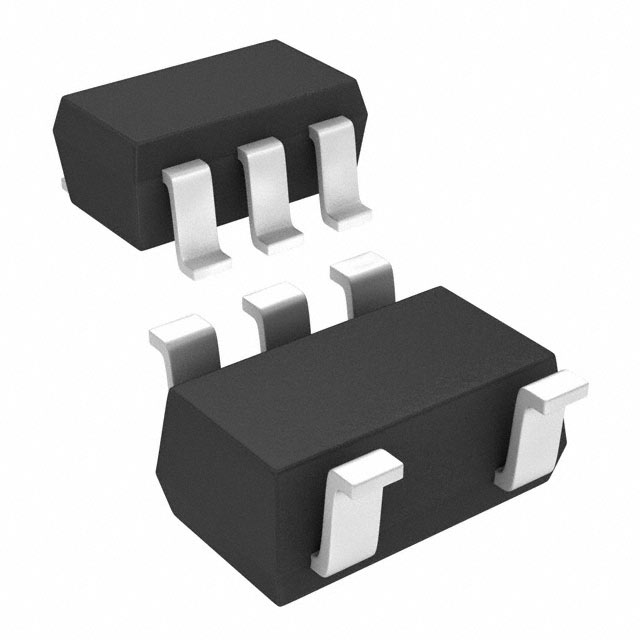

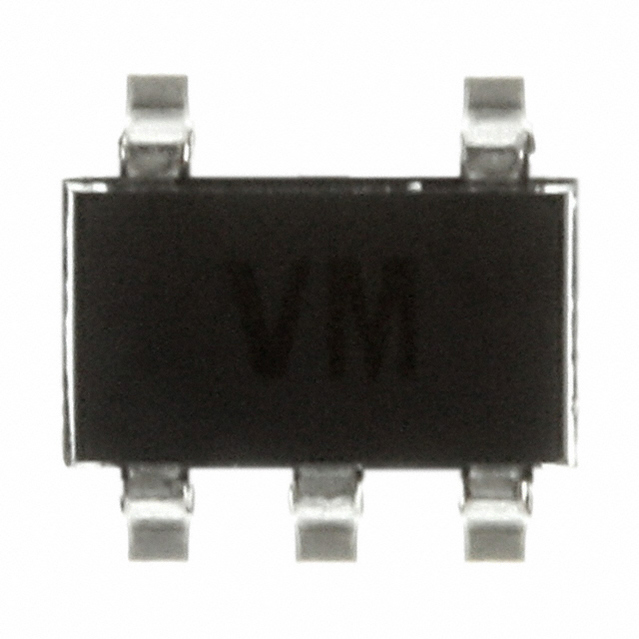

The amplifiers space saving 5-pin SOT23-5 package with outer dimensions of 2.8 mm x 2.9 mm make them very easy to implement on a board design.
**Key Features**
输出电流 5mA @5V
供电电流 20 µA
电路数 1
通道数 1
共模抑制比 55 dB
转换速率 50.0 mV/μs
增益频宽积 0.1 MHz
输入补偿电压 2 mV
输入偏置电流 1 pA
工作温度Max 105 ℃
工作温度Min -40 ℃
增益带宽 100 kHz
共模抑制比Min 85dB ~ 90dB
电源电压Max 10 V
电源电压Min 2.7 V
安装方式 Surface Mount
引脚数 5
封装 SOT-23-5
封装 SOT-23-5
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TS931BILT ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
AD8515AKSZ-REEL7 亚德诺 | 功能相似 | TS931BILT和AD8515AKSZ-REEL7的区别 |
OPA343UA 德州仪器 | 功能相似 | TS931BILT和OPA343UA的区别 |
OPA343NA/250 德州仪器 | 功能相似 | TS931BILT和OPA343NA/250的区别 |
