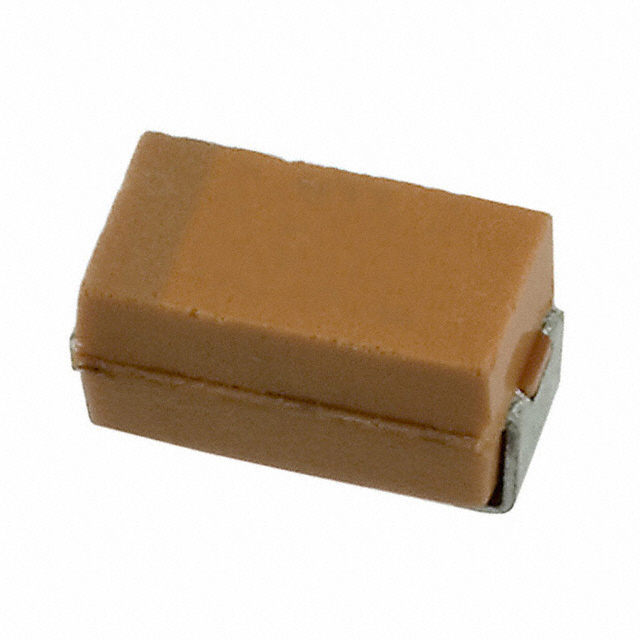

1206 6.8uF ±20% 16V
模制 钽器 1206(3216 公制) 1.5 欧姆
得捷:
CAP TANT 6.8UF 20% 16V 1206
贸泽:
Tantalum Capacitors - Solid SMD 16V 6.8uF 20% Tol. 1500 ESR
艾睿:
This TPSA685M016R1500 tantalum solid capacitor from AVX provides a high capacitance per volume, as well as a lower footprint design. It can withstand a voltage of 16 VDC. Its leakage current is 1.1 μA. This solid capacitor has a maximum operating temperature of 125 °C. Its capacitance value is 6.8uF. This product is 3.2 mm long, 1.6 mm tall and 1.6 mm deep. It has a tolerance of 20%.
安富利:
Cap Tant Solid 6.8uF 16V A CASE 20% 3.2 X 1.6 X 1.6mm SMD 3216-18 1.5 Ohm 125°C T/R
Verical:
Cap Tant Solid 6.8uF 16V A CASE 20% 3.2 X 1.6 X 1.6mm Inward L SMD 3216-18 1.5 Ohm 125C T/R
额定电压DC 16.0 V
电容 6.8 µF
等效串联电阻ESR 1.5 Ω
容差 ±20 %
工作温度Max 125 ℃
工作温度Min 55 ℃
额定电压 16 V
安装方式 Surface Mount
引脚数 2
封装公制 3216
封装 1206
长度 3.2 mm
宽度 1.6 mm
高度 1.6 mm
封装公制 3216
封装 1206
介质材料 Tantalum
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 2000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPSA685M016R1500 AVX 艾维克斯 | 当前型号 | 当前型号 |
TCJA106M010R0300 艾维克斯 | 类似代替 | TPSA685M016R1500和TCJA106M010R0300的区别 |
TCJR106M006R0500 艾维克斯 | 功能相似 | TPSA685M016R1500和TCJR106M006R0500的区别 |
TCJR475M010R0500 艾维克斯 | 功能相似 | TPSA685M016R1500和TCJR475M010R0500的区别 |
