表面贴装电容器 Surface Mount Capacitors
PRODUCT DESCRIPTION
KEMET’s family of solid tantalum chip capacitors is designed and manufactured with the demanding requirements of surface mount technology in mind.
These devices extend the advantages of solid tantalum technology to today’s surface mount circuit applications. Complementing multilayer ceramic chip convenience with capacitance ratings through 1500 µF, tantalum chip capacitors permit circuitdesigners to take full advantage of the benefits of surface mount technology.
SOLID TANTALUM CHIP CAPACITORS
T491 SERIES - Precision Molded Chip
FEATURES
• Meets or Exceeds EIA Standard 535BAAC
• Taped and Reeled per EIA 481-1
• Symmetrical, Compliant Terminations
• Optional Gold-plated Terminations
• Laser-marked Case
• 100% Surge current test on C, D, E, U, V, X sizes
• Halogen Free Epoxy
• Capacitance: 0.1 μF to 1000 μF
• Tolerance: ±10%, ±20%
• Voltage: 2.5-50 VDC
• Extended Range Values
• Low Profile Case Sizes
• RoHS Compliance & Lead Free Terminations
See www.kemet.com for transition information
• Operating Temperature: -55˚C to +125˚C
额定电压DC 35.0 V
电容 0.47 µF
等效串联电阻ESR 8 Ω
容差 ±20 %
产品系列 T491
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 35 V
安装方式 Surface Mount
引脚数 2

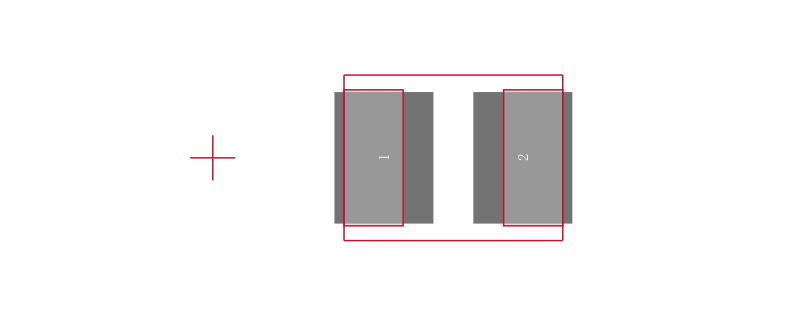

封装公制 3528-21
封装 3528
长度 3.5 mm
宽度 2.8 mm
高度 1.9 mm
封装公制 3528-21
封装 3528
介质材料 Tantalum
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 2000
寿命(小时) 2000h @85℃
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
T491B474M035AT KEMET Corporation 基美 | 当前型号 | 当前型号 |
T491B474M035AG 基美 | 功能相似 | T491B474M035AT和T491B474M035AG的区别 |
T491B474M035AS 基美 | 功能相似 | T491B474M035AT和T491B474M035AS的区别 |
