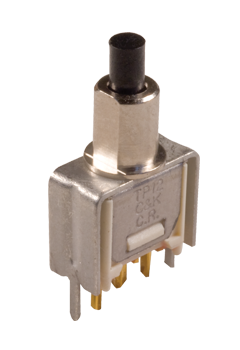

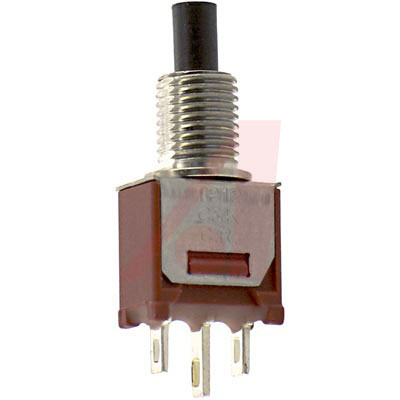

TP 系列 微型 单刀双掷 开-瞬时 焊接 接线片 按键开关
Tiny Pushbutton Switches, 20 Milliohms Max. Contact Resistance

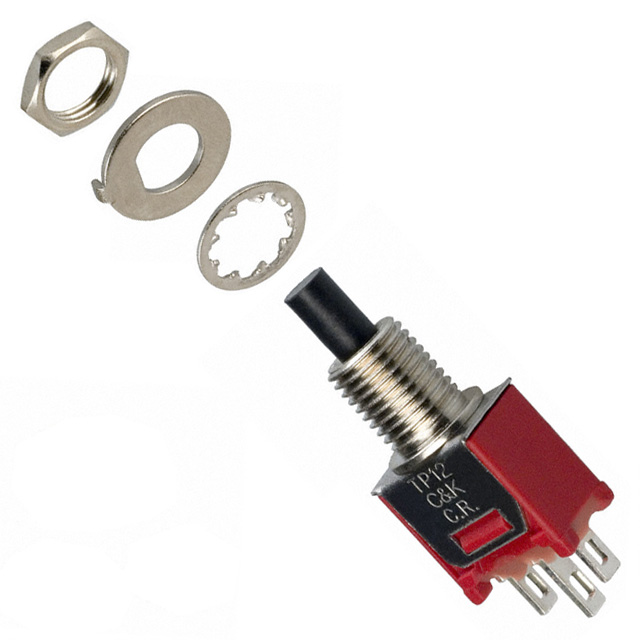

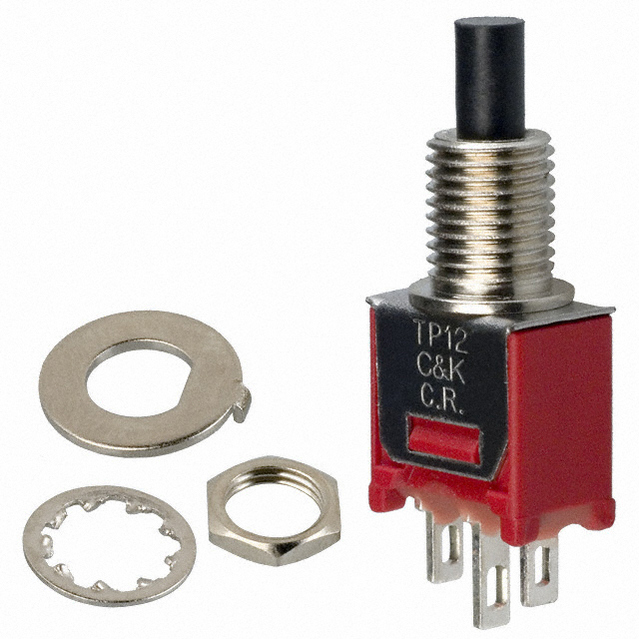

** Plunger:** Thermoplastic polyester. ** Bushings:** Brass, nickel-plated. ** Included Hardware:** Nut, locking ring and lockwasher. ** Switches with Solder Terminals. Contact Rating:** 1 amp at 120 VAC or 28 VDC UL listed. ** Contacts:** Coin silver, silver-plated. ** Terminals:** Brass, silver-plated, 0.01" terminal spacing. ** Switches with PC Terminals. Contact Rating:** 0.4 VA max. at 20 VAC or VDC max. ** Contacts and Terminals:** Brass, with gold-plate over nickel-plate.
Its typical applications for telecommunications and networking equipment, computers and peripherals, instrumentation and controls.
触点电镀 Silver
额定电压DC 28 V
额定电压AC 120 V
额定电流 1 A
排数 1
触点类型 SPDT
针脚数 2
接触电阻 ≤20 MΩ
触点额定电流 1.00 A
额定电流Max 1A @120VAC, 28VDC
工作温度Max 85 ℃
工作温度Min -30 ℃
额定电压 120 VAC
额定电压DC Max 28 V
额定电压AC Max 120 V
接触电阻Max <20 mΩ
安装方式 Lug, PCB
封装 -
长度 8.13 mm
高度 22.23 mm
封装 -
触点材质 Coin Silver
工作温度 -30℃ ~ 85℃
产品生命周期 30000 Cycles
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509031
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
TP12SHZQE C&K Components | 当前型号 | 当前型号 |
ZP32S0101 Apem Components | 功能相似 | TP12SHZQE和ZP32S0101的区别 |
