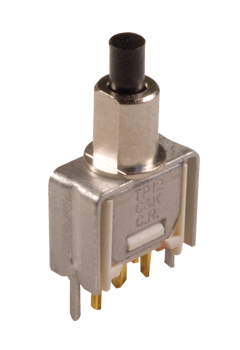

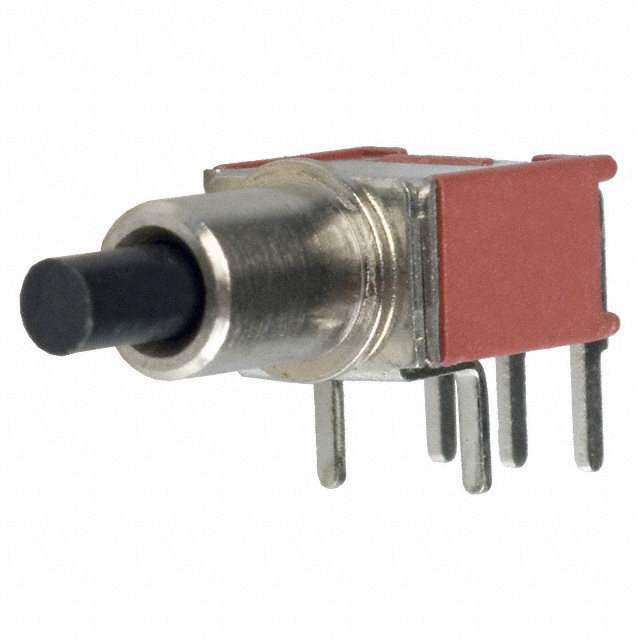

Switch Push Button ON Mom SPDT Round Plunger 1A 120VAC 28VDC Momentary Contact PC Pins Thru-Hole
Tiny Pushbutton Switches
立创商城:
TP12SH8AQE
艾睿:
Quickly reset and disrupt processes by mechanically pressing this TP12SH8AQE push button switch from C&a;K Components. This device has a maximum current rating of 1 A @ 120VAC 28VDC. It has a SPDT configuration. This push switch has an operating temperature range of -30 °C to 85 °C. The TP12SH8AQE push switch has a PC pin termination style. This product is 6.1 mm tall. The maximum AC voltage rating is 120 VAC and the maximum DC voltage rating is 28 VDC.
Chip1Stop:
Switch Push Button ON Mom SPDT Round Plunger 1A 120VAC 28VDC Momentary Contact PC Pins Thru-Hole
Verical:
Switch Push Button ON Mom SPDT Round Plunger 1A 120VAC 28VDC Momentary Contact Thru-Hole PC Pins Bulk
Newark:
# C & K COMPONENTS TP12SH8AQE Pushbutton
MASTER:
Tiny Pushbutton Switches
Online Components:
Tiny Pushbutton Switches
Electro Sonic:
Tiny Pushbutton Switches
触点电镀 Silver
额定电压DC 28 V
额定电压AC 120 V
额定电流 1A AC, 1A DC
排数 1
触点类型 SPDT
触点额定电流 1.00 A
额定电流Max 1A @120VAC, 28VDC
工作温度Max 85 ℃
工作温度Min -30 ℃
额定电压DC Max 28 V
额定电压AC Max 120 V
安装方式 Through Hole
封装 -
长度 8.13 mm
高度 6.1 mm
封装 -
触点材质 Coin Silver
工作温度 -30℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509031
