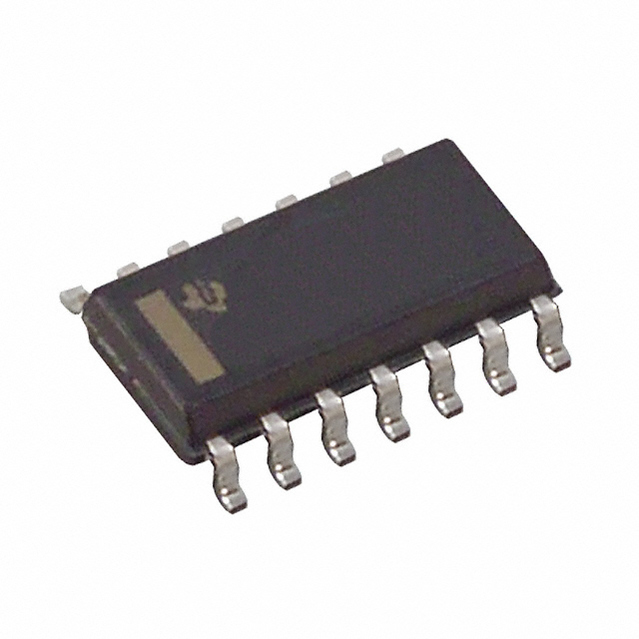

TLC083ID

家庭宽带宽高输出驱动单电源运算放大器 FAMILY OF WIDE BANDWIDTH HIGH OUTPUT DRIVE SINGLE SUPPLY OPERATIONAL AMPLIFIERS

description

The first members of ’s new BiMOS general-purpose operational amplifier family are the TLC08x. The BiMOS family concept is simple: provide an upgrade path for BiFET users who are moving away from dual-supply to single-supply systems and demand higher ac and dc performance. With performance rated from 4.5 V to 16 V across commercial 0°C to 70°C and an extended industrial temperature range −40°C to 125°C, BiMOS suits a wide range of audio, automotive, industrial, and instrumentation applications. Familiar features like offset nulling pins, and new features like MSOP PowerPAD packages and shutdown modes, enable higher levels of performance in a variety of applications.

Wide Bandwidth . . . 10 MHz

High Output Drive

  − IOH . . . 57 mA at VDD − 1.5 V

  − IOL . . . 55 mA at 0.5 V

High Slew Rate

  − SR+ . . . 16 V/µs

  − SR− . . . 19 V/µs

Wide Supply Range . . . 4.5 V to 16 V

Supply Current . . . 1.9 mA/Channel

Ultralow Power Shutdown Mode

    IDD . . . 125 µA/Channel

Low Input Noise Voltage . . . 8.5 nV√Hz

Input Offset Voltage . . . 60 µV

Ultra-Small Packages

    − 8 or 10 Pin MSOP TLC080/1/2/3
