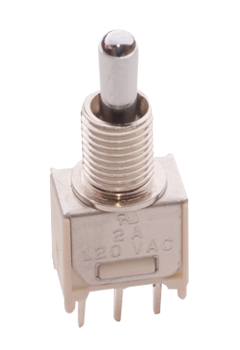

Switch Toggle ON None ON SPDT Round Lever PC Pins 3A 120VAC 28VDC PC Mount
Subminiature Toggle Switch
立创商城:
T101L1H9CQE
贸泽:
Toggle Switches SPDT On-None-On PC THRU-HOLE
艾睿:
Switch Toggle ON None ON SPDT Round Lever PC Pins 3A 120VAC 28VDC PC Mount Medical Bulk
Chip1Stop:
Switch Toggle ON None ON SPDT Round Lever PC Pins 3A 120VAC 28VDC PC Mount
Verical:
Switch Toggle ON None ON SPDT Round Lever PC Pins 3A 120VAC 28VDC PC Mount Medical Bulk
MASTER:
Subminiature Toggle Switch
Online Components:
Subminiature Toggle Switch
Electro Sonic:
Subminiature Toggle Switch
额定电压DC 28 V
额定电压AC 125 V
额定电流 3 A
排数 1
额定电流Max 3A @120VAC, 28VDC
工作温度Max 85 ℃
工作温度Min -30 ℃
额定电压DC Max 28 V
额定电压AC Max 120 V
接触电阻Max <20 mΩ
安装方式 Through Hole
封装 -
长度 8.13 mm
高度 32.71 mm
封装 -
触点材质 Coin Silver
工作温度 -30℃ ~ 85℃
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509065
