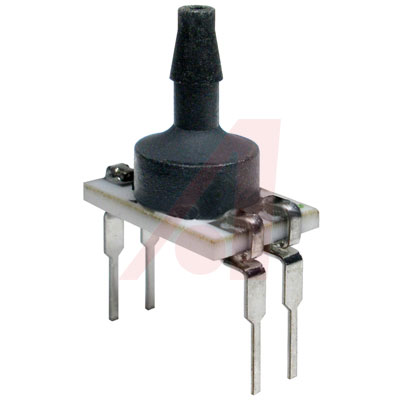

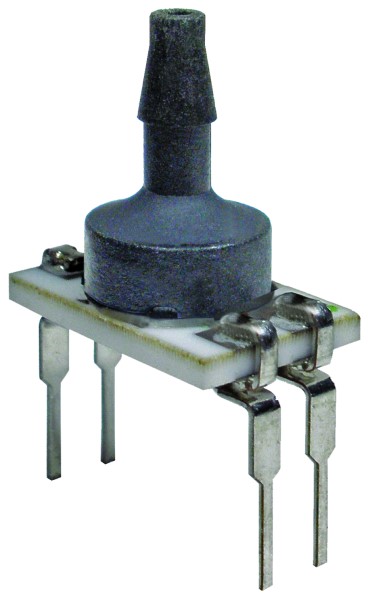

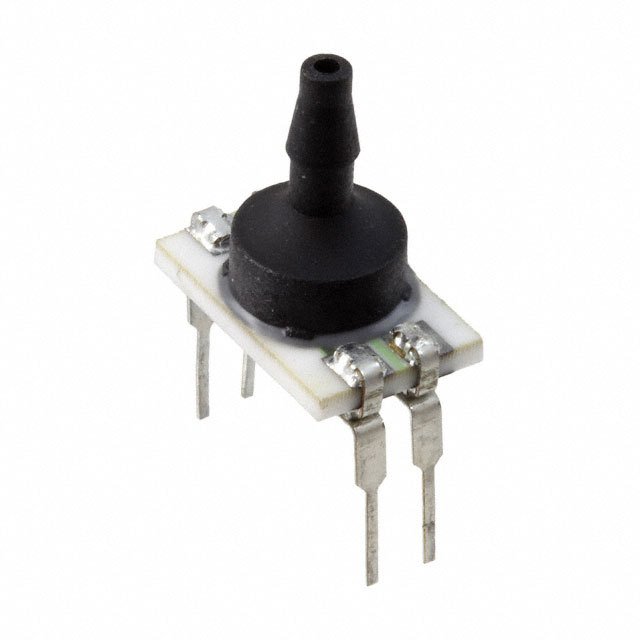

HONEYWELL TBPDANS005PGUCV. 压力传感器, 5PSI, 轴向 倒钩
The is a basic board mount piezoresistive silicon Pressure Sensor, offers infinite resolution of the pressure signal. This will operate as specified from -40 to 125°C -40 to 257°F. The sensor measures gage pressures. The gage pressure sensor is referenced to atmospheric pressure and provide an output proportional to pressure variations from atmosphere. Intended for use with non-corrosive, non-ionic gases, such as air and other dry gasses.
Do not use this product as safety or emergency stop devices or in any other application where failure of the product could result in personal injury.
额定电压DC 5.00 V
输出电压 0mV ~ 25mV
供电电流 600 µA
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±0.15 %
额定电压 5 VDC
电源电压 1.5V ~ 12V
安装方式 Through Hole
引脚数 4
封装 DIP-4
封装 DIP-4
工作温度 -40℃ ~ 125℃
产品生命周期 Active
制造应用 Commercial, 工业, 商业, 医用, Automation & Process Control, Medical, Industrial, HVAC, 自动化与过程控制
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 9026204000
