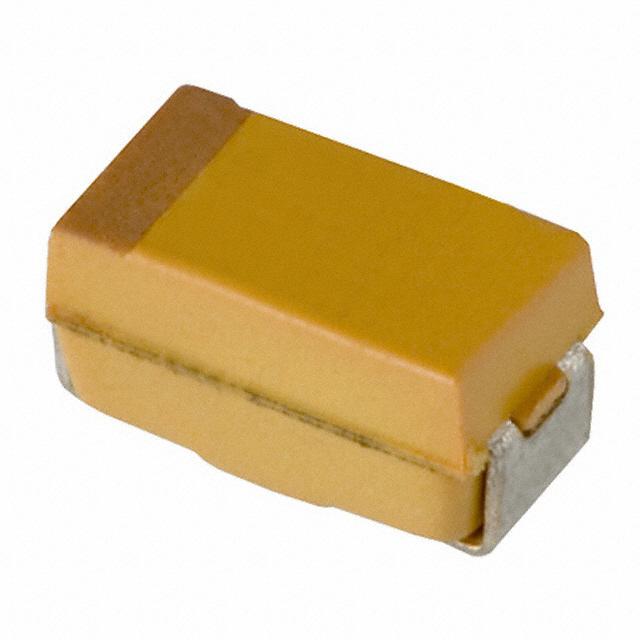

TPSC337M004R0100

TPS 系列 330 uF ±20 % 4 V 表面贴装 低 ESR 钽 贴片电容

330µF Molded Tantalum Capacitors 4V 2312 6032 Metric 100mOhm

安富利:
With an ESR as low as 80mΩ, TPS capacitors are suitable for smoothing and filtering on 3.3V power rails, which is a favorite output voltage of DC/DC converters. Devices with high capacitance can also be used as battery support in handheld devices where small size is one of the key design requirements.TPS tantalum capacitors have a maximum direct leakage current of 19.8μA and a maximum dissipation factor at 120Hz of 12%. Operating temperature range is -55 to +125°C. Importantly, these devices meet the requirements of AEC-Q200 for the automotive industry.
