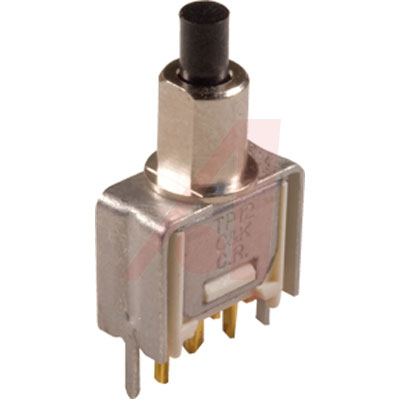

TP11LTAQE图片2
TP11LTAQE图片3

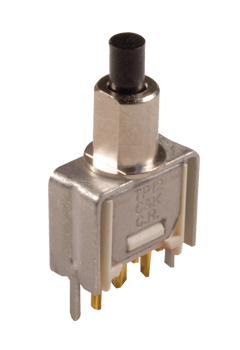

TP11LTAQE图片4
TP11LTAQE概述

Switch Push Button OFF Mom SPST Round Plunger 1A 120VAC 28VDC Momentary Contact PC Pins Panel Mount/Through Hole

**Features:**

* Epoxy terminal seal-compatible with bottom wash cleaning

* Subminiature size - capable of switching 1 AMP

* Snap-in front panel mounting available

**Typical Applications:**

* Telecommunications & networking equipment

* Instrumentation & controls

* Computers & peripherals


立创商城:
TP11LTAQE


艾睿:
Switch Push Button OFF Mom SPST Round Plunger 1A 120VAC 28VDC Momentary Contact PC Pins Panel Mount/Through Hole Bulk


Allied Electronics:
SWITCH, PUSHBUTTON, SPST, N-O, 1A 120V


Verical:
Switch Push Button OFF Mom SPST Round Plunger 1A 120VAC 28VDC Momentary Contact Panel Mount/Through Hole PC Pins Bulk


MASTER:
Tiny Pushbutton Switches


Online Components:
Tiny Pushbutton Switches


Electro Sonic:
Tiny Pushbutton Switches


TP11LTAQE中文资料参数规格
技术参数

额定电流 1 A

排数 1

额定电流Max 1A @120VAC, 28VDC

工作温度Max 85 ℃

工作温度Min -30 ℃

额定电压 120 VAC

额定电压DC Max 28 V

额定电压AC Max 120 V

接触电阻Max <20 mΩ

封装参数

安装方式 Through Hole

封装 -

外形尺寸

长度 8.13 mm

高度 7.11 mm

封装 -

物理参数

触点材质 Coin Silver

工作温度 -30℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8536509031

数据手册

在线购买TP11LTAQE
型号: TP11LTAQE
制造商: C&K Components
描述:Switch Push Button OFF Mom SPST Round Plunger 1A 120VAC 28VDC Momentary Contact PC Pins Panel Mount/Through Hole
