TP11J81ZGE22中文资料参数规格
封装参数
封装 -
外形尺寸
封装 -
其他
Series TP
Type Standard
Packaging Bulk
Current-Rating 1A AC/DC
Termination-Style Solder Lug
Mounting-Type Panel Mount, Snap-In
Features Epoxy Sealed Terminals
Ingress-Protection -
Circuit SPST-NO
Voltage-Rating-AC 120V
Voltage-Rating-DC 28V
Actuator-Type Square, Button
Illumination-Voltage-Nominal -
Panel-Cutout-Dimensions Rectangular - 15.24mm x 12.70mm
Switch-Function Off-Mom
Color-Actuator-Cap Black
Illumination-Type-Color -
符合标准
RoHS标准 RoHS Compliant
在线购买TP11J81ZGE22
型号： TP11J81ZGE22
制造商：
C&K Components

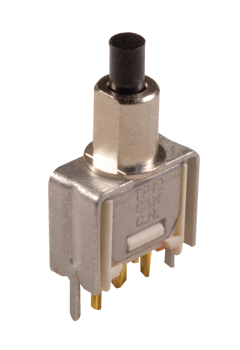

描述：Switch Push Button OFF Mom SPST Square Button 1A 120VAC 28VDC 0.4VA Momentary Contact Solder Lug Panel Mount
