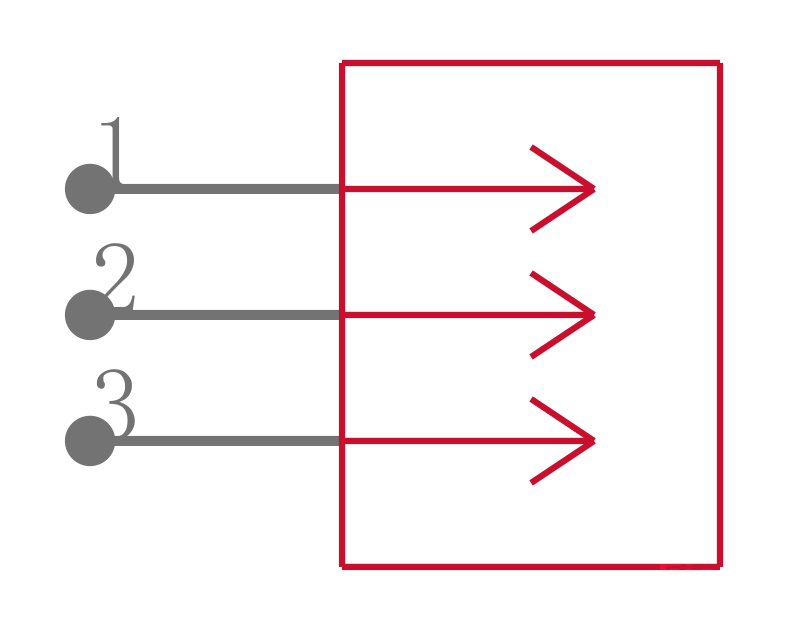

TSW-103-14-L-S

SAMTEC TSW-103-14-L-S Board-To-Board Connector, 2.54mm, 3Contacts, Header, TSW Series, Through Hole, 1Rows

针座 通孔 3 位置 0.100"（2.54mm）

欧时:
.100" Terminal Strip

得捷:
CONN HEADER VERT 3POS 2.54MM

艾睿:
Samtec brings you their unshrouded TSW-103-14-L-S header connector, an important safety tool for protecting your electronic components from accidental damage. This HDR connector&s;s 3 contacts that are made out of phosphor bronze and plated with gold over nickel. This is a 1-row connector. It has a straight body orientation. It has a header type gender. Its pitch is 2.54 mm. It has a maximum voltage rating of 550 VAC. This device has a maximum current rating of 6.3 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. It uses the solder termination method. TSW-103-14-L-S is housed in black polyester. This connector has an operating temperature of -55 to 125 °C. This product is 7.62 mm long, 10.67 mm tall and 2.54 mm deep.

安富利:
Conn Unshrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole

Verical:
Conn Unshrouded Header HDR 3 POS 2.54mm Solder ST Top Entry Thru-Hole Bag

Newark:
# SAMTEC  TSW-103-14-L-S  Board-To-Board Connector, 2.54 mm, 3 Contacts, Header, TSW Series, Through Hole, 1 Rows
