TPSD107M010S0140概述

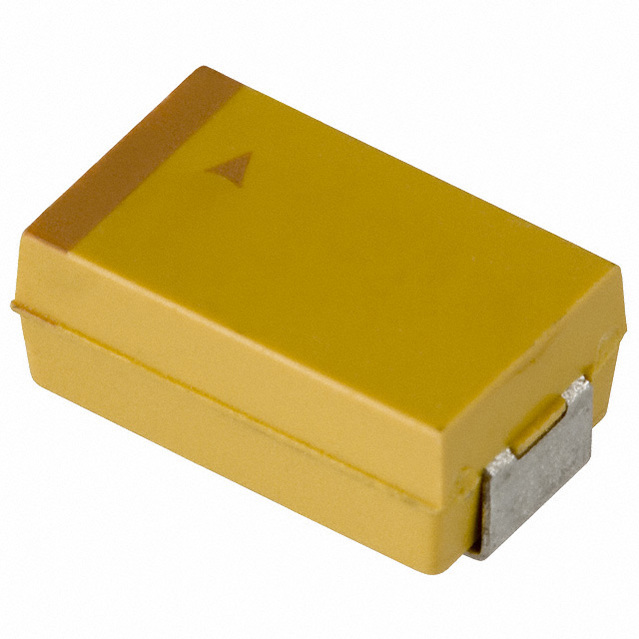

Cap Tant Solid 100uF 10V D CASE 20% 7.3 X 4.3 X 2.9mm SMD 7343-31 T/R
100µF Molded Tantalum Capacitors 10V 2917 7343 Metric 140mOhm
安富利:
With an ESR as low as 80mΩ, TPS capacitors are suitable for smoothing and filtering on 3.3V power rails, which is a favorite output voltage of DC/DC converters. Devices with high capacitance can also be used as battery support in handheld devices where small size is one of the key design requirements.TPS tantalum capacitors have a maximum direct leakage current of 19.8μA and a maximum dissipation factor at 120Hz of 12%. Operating temperature range is -55 to +125°C. Importantly, these devices meet the requirements of AEC-Q200 for the automotive industry.
