TP12SH8AGE

TP12SH8AGE图片1
TP12SH8AGE图片2

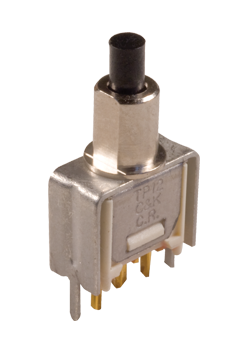

TP12SH8AGE图片3
TP12SH8AGE概述

Switch Push Button ON Mom SPDT Round Plunger 1A 120VAC 28VDC 0.4VA Momentary Contact PC Pins Thru-Hole

Tiny Pushbutton Switches


立创商城:
TP12SH8AGE


艾睿:
Switch Push Button ON Mom SPDT Round Plunger 1A 120VAC 28VDC 0.4VA Momentary Contact PC Pins Thru-Hole


Allied Electronics:
Switch Push Button ON Mom SPDT Round Plunger 1A 12


Verical:
Switch Push Button ON Mom SPDT Round Plunger 1A 120VAC 28VDC 0.4VA Momentary Contact Thru-Hole PC Pins Bulk


MASTER:
Tiny Pushbutton Switches


Online Components:
Tiny Pushbutton Switches


Electro Sonic:
Tiny Pushbutton Switches


TP12SH8AGE中文资料参数规格
技术参数

排数 1

额定电流Max 1A @120VAC, 28VDC

工作温度Max 85 ℃

工作温度Min -30 ℃

额定电压DC Max 28 V

额定电压AC Max 120 V

接触电阻Max <20 mΩ

封装参数

安装方式 Through Hole

封装 -

外形尺寸

长度 8.13 mm

高度 6.1 mm

封装 -

物理参数

触点材质 Coin Silver

工作温度 -30℃ ~ 85℃

其他

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8536509031

数据手册

在线购买TP12SH8AGE
型号: TP12SH8AGE
制造商: C&K Components
描述:Switch Push Button ON Mom SPDT Round Plunger 1A 120VAC 28VDC 0.4VA Momentary Contact PC Pins Thru-Hole
