TMS-102-02-G-S

板至板连接, 1.27 mm, 2 触点, 针座, TMS Series, 通孔安装, 1 排

针座 通孔 2 位置 0.050"（1.27mm）

得捷:
CONN HEADER 2POS .050" T/H GOLD

欧时:
.050" x .100" Micro Terminal Strip

e络盟:
板至板连接, 1.27 mm, 2 触点, 针座, TMS Series, 通孔安装, 1 排

艾睿:

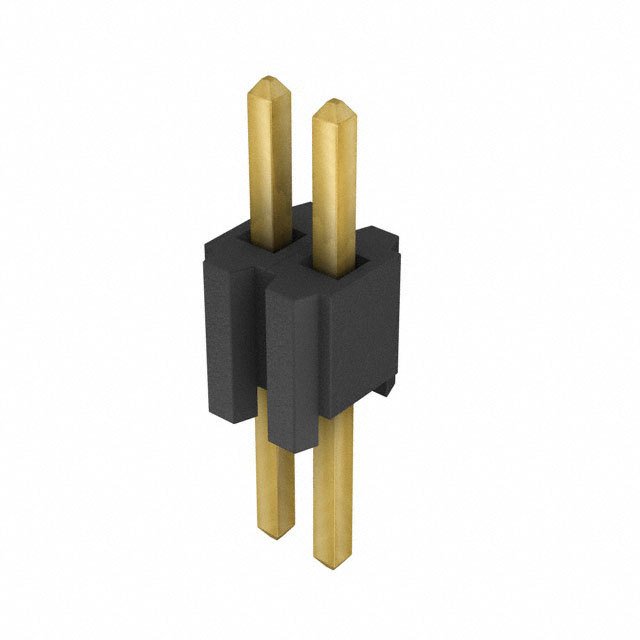

Safety is an important concern when designing electronic devices. Samtec&s;s unshrouded TMS-102-02-G-S header connector helps protect your equipment from accidental shortages. This HDR connector&s;s 2 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 1.27 mm. It has a straight body orientation. It has a header type gender. This is a 1-row connector. This device has a maximum current rating of 5 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. This connector has an operating temperature of -55 to 125 °C. This product is 2.54 mm long, 5.08 mm tall and 2.48 mm deep. TMS-102-02-G-S is housed in black liquid crystal polymer. It uses the solder termination method.

安富利:
Conn Unshrouded Header HDR 2 POS 1.27mm Solder ST Thru-Hole

Verical:
Conn Unshrouded Header HDR 2 POS 1.27mm Solder ST Thru-Hole Bulk

Newark:
# SAMTEC  TMS-102-02-G-S  Board-To-Board Connector, 1.27 mm, 2 Contacts, Header, TMS Series, Through Hole, 1 Rows
