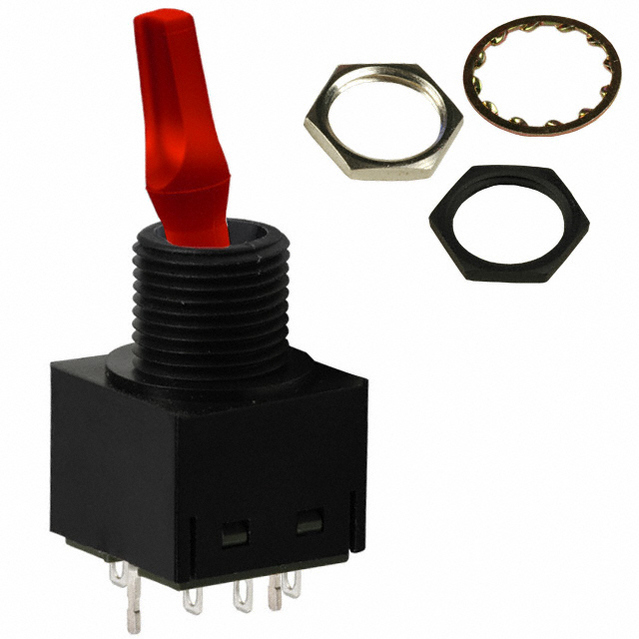

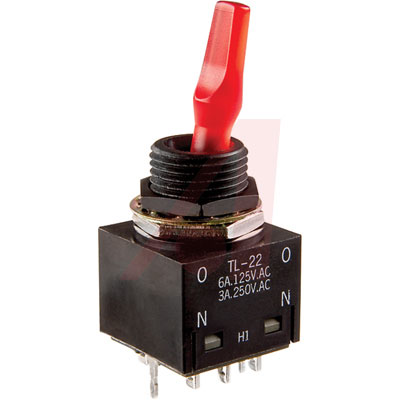

NKK SWITCHES TL22DCAW015C 拨动开关, TL系列, 发光, DPDT, 开-无-开, 面板, 6 A
The TL series fully illuminated Toggle Switch is choice of long or short toggles in translucent colours combine with bright LEDs available in red, amber and green, plus super bright LEDs available in white, green and blue. Antistatic material used for toggle withstands 20kV electrostatic discharge. Panel seal, achieved with use of optional exterior O-ring, conforms to IP65 of IEC529 standards. Interior O-ring protects contacts from oil, dust, water and other contaminants. Terminals are moulded in and epoxy sealed to lock out flux, dust and other contaminants.
- .
- UL94V-0 Flammability rating
- .
- Black-face nut enhances front-panel appearance
- .
- High insulating barriers protect against crossover
触点电镀 Silver
额定电压DC 12 V
额定电压AC 125 V
额定电流 6 A
绝缘电阻 1000 MΩ
排数 2
方向 Vertical
触点类型 DPDT
针脚数 2
接触电阻 10 mΩ
额定电流Max 6A @125VAC, 12VDC
工作温度Max 55 ℃
工作温度Min -10 ℃
额定电压 125 VAC
接触电阻Max 10 mΩ
安装方式 Panel, Solder Lug
长度 18 mm
宽度 18 mm
高度 48.5 mm
颜色 Red
触点材质 Silver
产品生命周期 25000 Cycles
包装方式 Bulk
制造应用 Industrial, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
TL22DCAW015C NKK 日本长野 | 当前型号 | 当前型号 |
TL22DNAW016G 日本长野 | 完全替代 | TL22DCAW015C和TL22DNAW016G的区别 |
TL22DDAW015D 日本长野 | 完全替代 | TL22DCAW015C和TL22DDAW015D的区别 |
TL22DNAW016B 日本长野 | 完全替代 | TL22DCAW015C和TL22DNAW016B的区别 |
