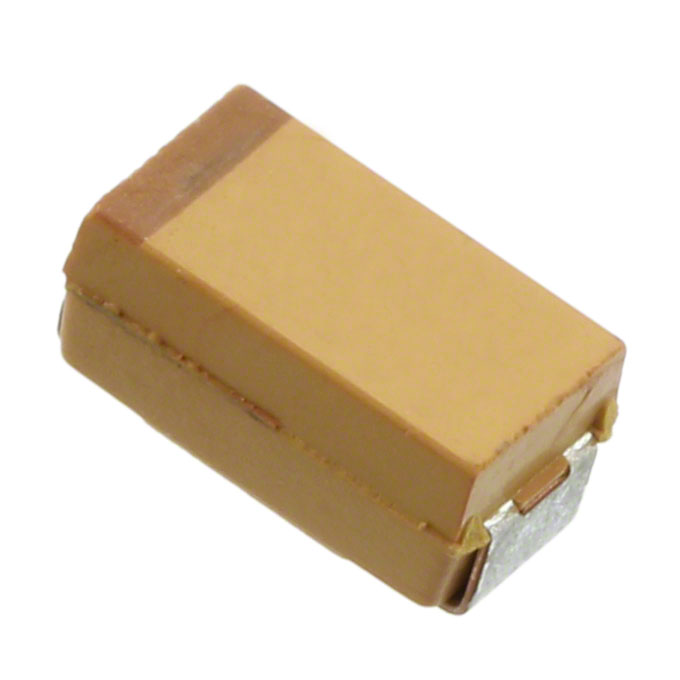

TPSD107K010H0080

2917 100uF ±10% 10V 3.1mm

100µF Molded Tantalum Capacitors 10V 2917 7343 Metric 80mOhm

得捷:
CAP TANT 100UF 10% 10V 2917

贸泽:
Tantalum Capacitors - Solid SMD 10V 100uF CASE D

安富利:
With an ESR as low as 80mΩ, TPS capacitors are suitable for smoothing and filtering on 3.3V power rails, which is a favorite output voltage of DC/DC converters. Devices with high capacitance can also be used as battery support in handheld devices where small size is one of the key design requirements.TPS tantalum capacitors have a maximum direct leakage current of 19.8μA and a maximum dissipation factor at 120Hz of 12%. Operating temperature range is -55 to +125°C. Importantly, these devices meet the requirements of AEC-Q200 for the automotive industry.
