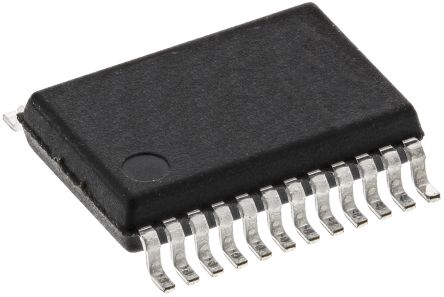

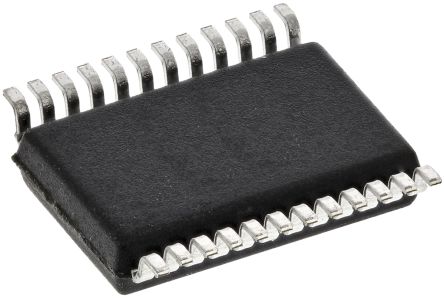

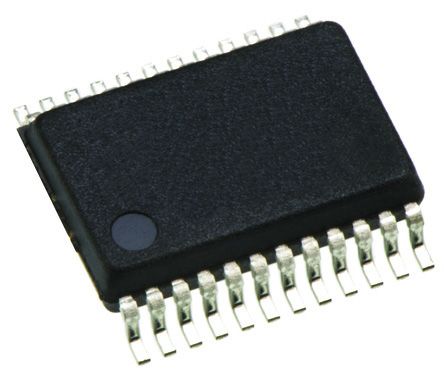

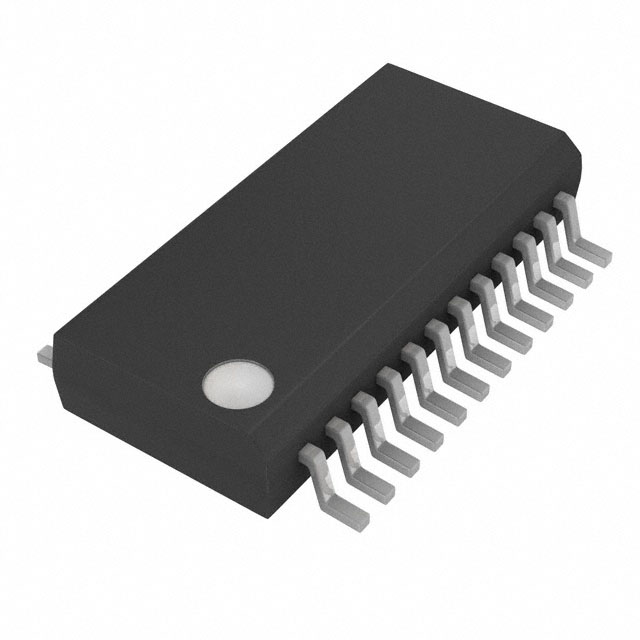

TLC5928DBQR

TEXAS INSTRUMENTS  TLC5928DBQR.  芯片, LED驱动器, 恒流, 16通道

Signage/Linear LED Drivers, Texas Instruments

Texas Instruments 的一系列专用单输出和多输出 LED 驱动器 IC，适用于各种显示屏、标牌、指示和背光应用。

得捷:
IC LED DRIVER LINEAR 35MA 24SSOP

立创商城:
TLC5928DBQR

德州仪器TI:
16 channel constant current LED driver with LED open Detection

欧时:
Texas Instruments TLC5928DBQR 16段 LED 驱动器, 3 → 5.5 V, 24引脚 SSOP封装

e络盟:
LED驱动器, 16输出, 恒定电流, 3V-5.5V输入, 35MHz开关, 17V/35mA输出, SSOP-24

艾睿:
LED Driver 16 Segment 40000uA Supply Current 24-Pin SSOP T/R

安富利:
LED DRVR 16Segment 3.3V/5V 24-Pin SSOP T/R

Chip1Stop:
LED Driver 16Segment 3.3V/5V 24-Pin SSOP T/R

Verical:
LED Driver 16 Segment 40uA Supply Current 24-Pin SSOP T/R

Newark:
The TLC5928DBQR is a 16-channel Constant-current Sink LED Driver with LED open detection. Each channel can be turned on/off by writing serial data to an internal register. The constant-current value of all 16 channels is set by a single external resistor. The TLC5928DBQR has two error detection circuits, one for LED open detection LOD and one for a pre-thermal warning PTW. LOD detects a broken or disconnected LED and LEDs shorted to GND while the constant-current output is on. PTW indicates a high temperature condition.

Win Source:
LED Driver IC 16 Output Linear Shift Register 35mA 24-SSOP/QSOP
