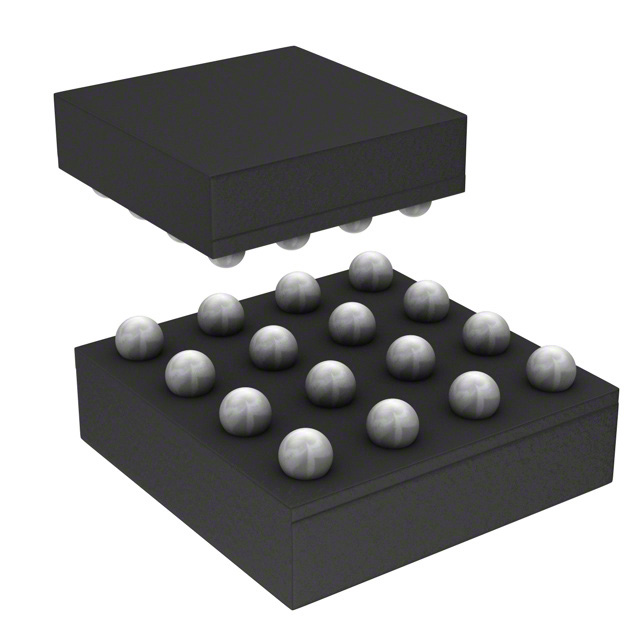

带有升压直流/直流转换器、电平转换器和 ESD 钳位的 HDMI 配套芯片 16-DSBGA -40 to 85
The TPD5S115 device is an integrated HDMI companion chip solution. The device provides a regulated 5-V output 5VOUT for sourcing the HDMI power line. The regulated 5-V output supplies up to 55 mA to the HDMI receiver with a current limiting function. The TPD5S115 features two control signals: EN and LS_OE. The control of 5VOUT and the hot plug detect HPD circuitry is independent of the LS_OE control signal and is controlled by the EN pin. The EN pin allows the detection scheme 5VOUT + HPD to be active before turning on the whole HDMI link. The LS_OE activates the internal LDO, CEC, SCL, and SDA buffers only when EN is also activated. This dual stage enable scheme ensures optimized power saving for portable applications.

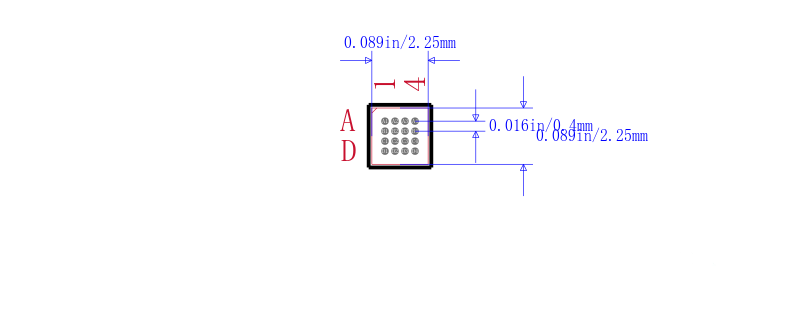

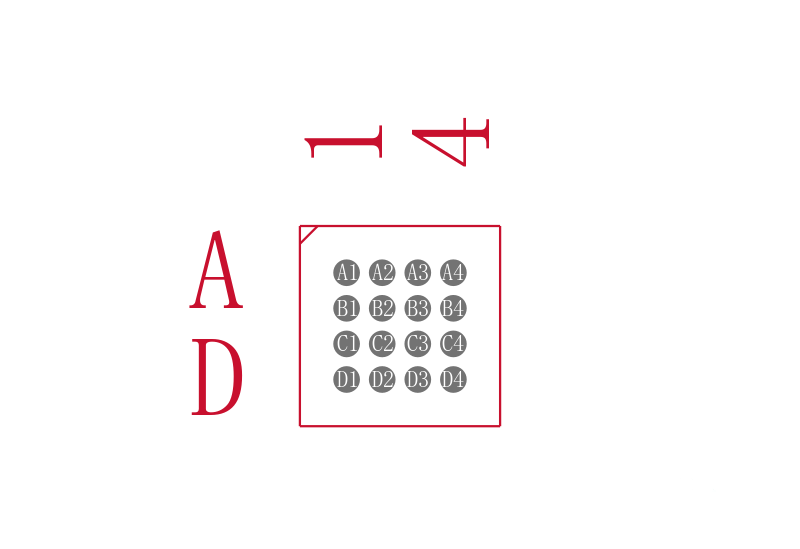

There are three noninverting, bidirectional, voltage level translation circuits for the SDA, SCL, and CEC lines. Each have a common power rail VCCA on the A side from 1.1 V to 3.6 V. On the B side, the SCL_B and SDA_B each have an internal 1.75-kΩ pullup connected to the regulated 5-V rail 5VOUT. The DDC SCL_B and SDA_B pins meet the I2C specification and drive up to 750-pF loads with the buffers. The CEC_B pin has an internal 27-kΩ pullup to an internal 3.3-V supply. The TPD5S115 exceeds the IEC61000-4-2 Level 4 ESD protection level. This device features a space saving, 1.72-mm × 1.72-mm, YFF package with 0.4-mm pitch.
