TEXAS INSTRUMENTS TPS75100YFFT 发光二极管驱动器, 4输出, 恒流, 2.7V-5.5V输入, DSBGA-9
The TPS7510x linear low dropout LDO matching LED current source is optimized for low-power keypad and navigation pad LED backlighting applications. The device provides a constant current to up to four unmatched LEDs organized in two banks of two LEDs each in a common-cathode topology. Without an external resistor, the current source defaults to a factory-programmable, preset current level with ±0.5% accuracy typical. An optional external resistor can be used to set initial brightness to user-programmable values with higher accuracy. Brightness can be varied from off to full brightness by inputting a pulse width modulation PWM signal on each enable pin ENx, where x indicates LED bank A or B. Each bank has independent enable and brightness control, but current matching is done to all four channels concurrently. The input supply range is ideally suited for single-cell Li-Ion battery supplies and the TPS7510x can provide up to 25 mA per LED.
No internal switching signals are used, eliminating troublesome electromagnetic interference EMI. The TPS7510x is offered in an ultra-small, 9-ball, 0.4-mm ball-pitch wafer chip-scale package WCSP and a 2.50-mm × 2.50-mm, 10-pin WSON package, yielding a very compact total solution size ideal for mobile handsets and portable backlighting applications. The device is fully specified over TJ = –40°C to +85°C.
输出接口数 4
输入电压DC 3.8 V
输出电压 0.5V ~ 3.6V
输出电流 0.01 A
通道数 2
针脚数 9
耗散功率 704 W
静态电流 180 µA
输入电压Max 5.5 V
输入电压Min 2.7 V
输入电压DC Max 5.5 V
输入电压DC Min 2.7 v
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 704 mW
电源电压 2.7V ~ 5.5V
输入电压 2.7V ~ 5.5V
安装方式 Surface Mount
引脚数 9

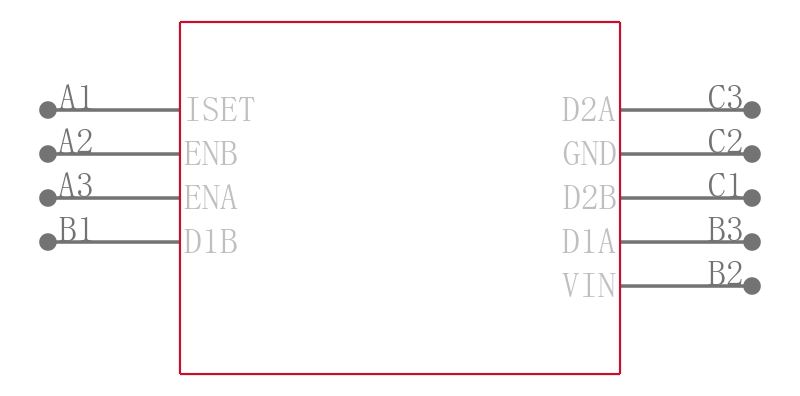

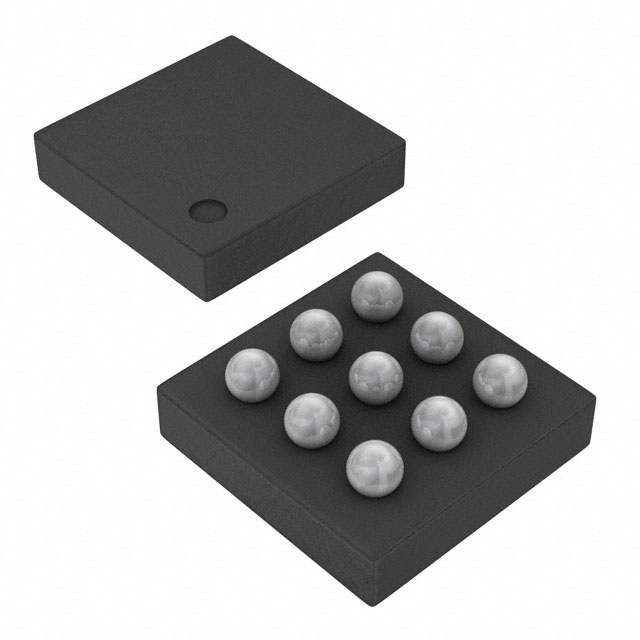

封装 DSBGA-9
封装 DSBGA-9
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
