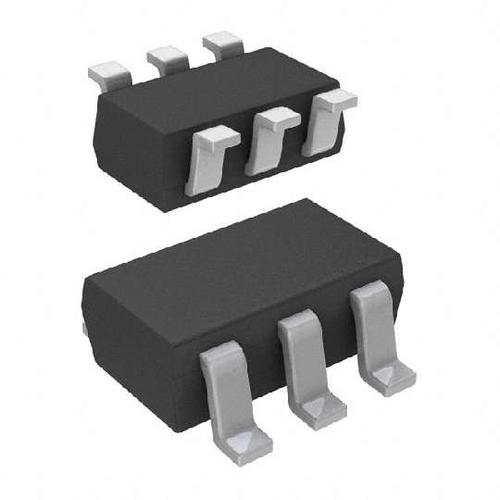

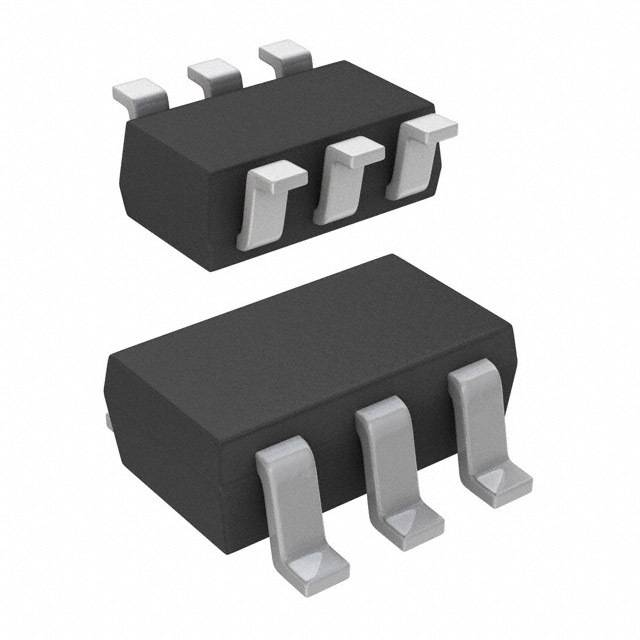

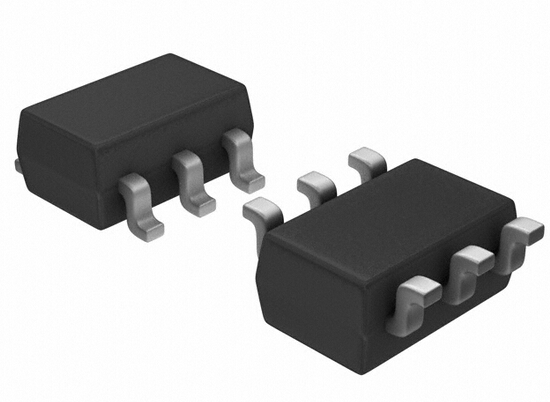

TEXAS INSTRUMENTS TPS61165DBVR 芯片, 发光二极管驱动器, 升压, PWM, SOT-23-6
With a 40-V rated integrated switch FET, the TPS61165 device is a boost converter that drives LEDs in series. The boost converter runs at a 1.2-MHz fixed switching frequency with 1.2-A switch current limit, allowing the use of a high-brightness LED in general lighting.
The default white LED current is set with the external sensor resistor Rset, and the feedback voltage is regulated to 200 mV, as shown in _Typical Application_. During the operation, the LED current can be controlled using the one-wire digital interface EasyScale protocol through the CTRL pin. Alternatively, a pulse-width-modulation PWM signal can be applied to the CTRL pin through which the duty cycle determines the feedback reference voltage. In either digital or PWM mode, the TPS61165 device does not burst the LED current; therefore, it does not generate audible noises on the output capacitor. For maximum protection, the device features integrated open-LED protection that disables the TPS61165 device to prevent the output from exceeding its absolute maximum voltage ratings during open LED conditions.
频率 1.2 MHz
输出接口数 1
输出电压 3V ~ 38V
针脚数 6
耗散功率 470 W
静态电流 1.50 mA
开关频率 1.2 MHz
拓扑结构 Boost
输入电压Max 18 V
输入电压Min 3 V
输出电压Max 38 V
输出电流Max 1.2 A
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 470 mW
电源电压 3V ~ 18V
电源电压Max 18 V
电源电压Min 3 V
输入电压 2.7V ~ 18V
安装方式 Surface Mount
引脚数 6
封装 SOT-23-6
封装 SOT-23-6
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 汽车级,背光, 发光二极管照明
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
香港进出口证 NLR
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS61165DBVR TI 德州仪器 | 当前型号 | 当前型号 |
TPS61165DBVT 德州仪器 | 完全替代 | TPS61165DBVR和TPS61165DBVT的区别 |
