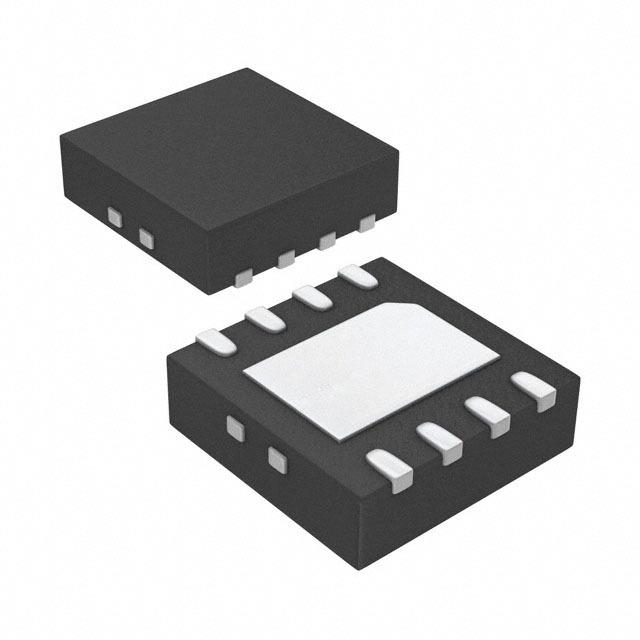

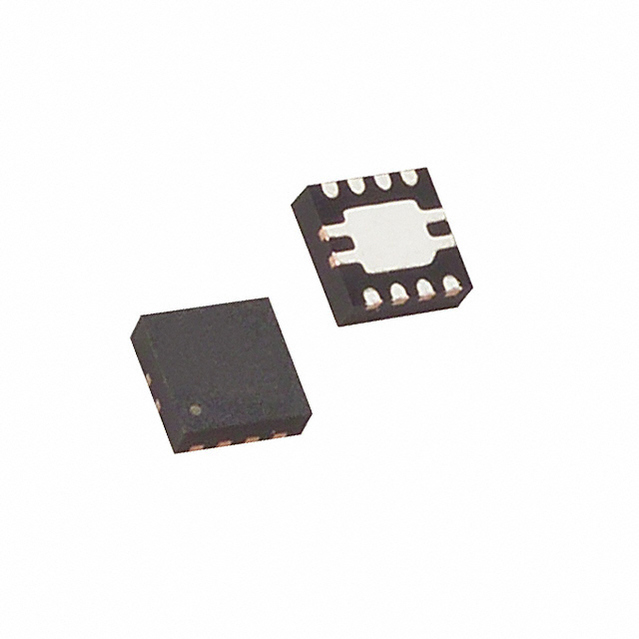

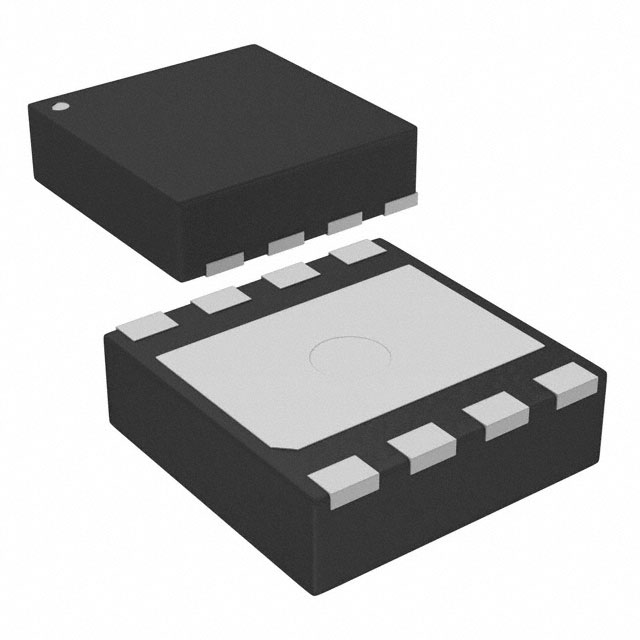

TPS61043DRBT

TEXAS INSTRUMENTS  TPS61043DRBT.  发光二极管驱动器, 1输出, 升压逐步上升, 1.8V-6V输入, 1MHz开关, 16.9V/30mA输出, SON-8

The is a high-frequency Boost Converter with constant current output that drives white LEDs or similar. The LED current is set with the external sense resistor RS and is directly regulated by the feedback pin FB that regulates the voltage across the sense resistor RS to 252mV typical. To control LED brightness, the LED current can be pulsed by applying a PWM pulse width modulated signal with a frequency range of 100Hz to 50kHz to the control pin CTRL. To allow higher flexibility, the device can be configured so that the brightness is controlled by an analogue signal as well, as described in application information section. To avoid possible leakage currents through the LEDs during shutdown, the control pin CTRL disables the device and disconnects the LEDs from ground. The TPS61043 device provides a solution for applications where higher LED currents or more than four LEDs in series must be powered.

.

Current source with 18V over-voltage protection

.

Powers up to 4 LEDs in series

.

Internal 30V switch

.

Up to 85% efficiency

.

Precise brightness control using PWM signal or analogue signal

.

Operates with small-output capacitors down to 100nF

.

Disconnects LEDs during shutdown

.

400mA Internal power MOSFET switch

.

38µA Typical no load quiescent current

.

0.1µA Typical shutdown current

.

Green product and no Sb/Br
