恒流LED驱动器,具有数字和PWM亮度控制 CONSTANT CURRENT LED DRIVER WITH DIGITAL AND PWM BRIGHTNESS CONTROL
Description
The TPS6106x is a high-frequency, synchronous boost converter with constant current output to drive up to five white LEDs. For maximum safety, the device features integrated overvoltage and an advanced short-circuit protection when the output is shorted to ground. The device operates with 1-MHz fixed switching frequency to allow for the use of small external components and to simplify possible EMI problems. The device comes with three different overvoltage protection thresholds 14 V, 18 V, and 23 V to allow inexpensive and small-output capacitors with lower voltage ratings. The LED current is initially set with the external sense resistor Rs, and the feedback voltage is regulated to 500 mV or 250 mV, depending on the configuration of the ILED pin.
Features
• LED Driver With Integrated Overvoltage and Short-Circuit Protection
• 2.7-V to 6-V Input Voltage Range
• 500-mV or 250-mV Feedback Voltage
• TPS61060 Powers up to 3 LEDs
• TPS61061 Powers up to 4 LEDs
• TPS61062 Powers up to 5 LEDs
• PWM Brightness Control on Enable
• Digital Brightness Control on ILED
• 1-MHz Fixed Switching Frequency
• 400-mA Internal Power MOSFET Switch
• LEDs Disconnected During Shutdown
• Operates With Small-Output Capacitors Down to 220 nF
• Up to 80% Efficiency
• 8-Pin NanoFree™ Package Chipscale, CSP
• 3-mm × 3-mm QFN Package
Applications
• White LED Drivers
• Cellular Phones
• PDAs, Pocket PCs, and Smart Phones
• Digital Still Cameras
• Handheld Devices
频率 1 MHz
输出接口数 1
输入电压DC 2.70V ~ 6.00V
输出电压 18.5 V
输出电流 400 mA
静态电流 1.00 mA
调节输出数 1
拓扑结构 Boost
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.7V ~ 6V
输入电压 6 V
安装方式 Surface Mount
引脚数 8

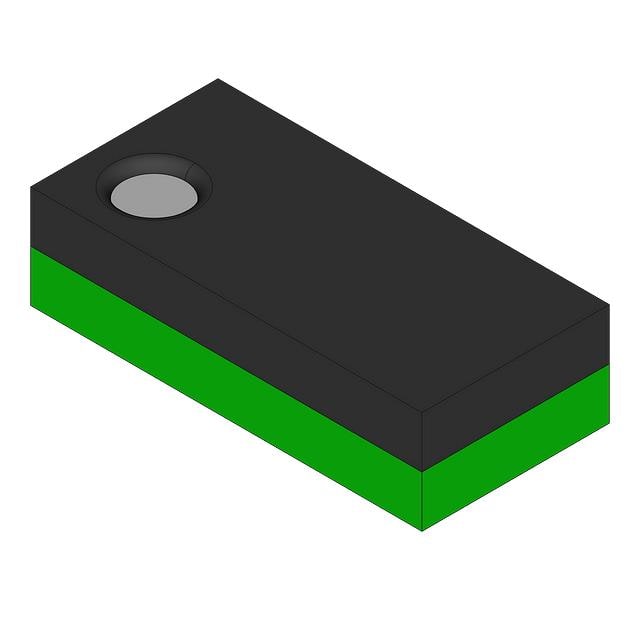

封装 DSBGA-8
长度 2.15 mm
宽度 2.15 mm
高度 0.3 mm
封装 DSBGA-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS61061YZFR TI 德州仪器 | 当前型号 | 当前型号 |
TPS61061YZFT 德州仪器 | 完全替代 | TPS61061YZFR和TPS61061YZFT的区别 |
