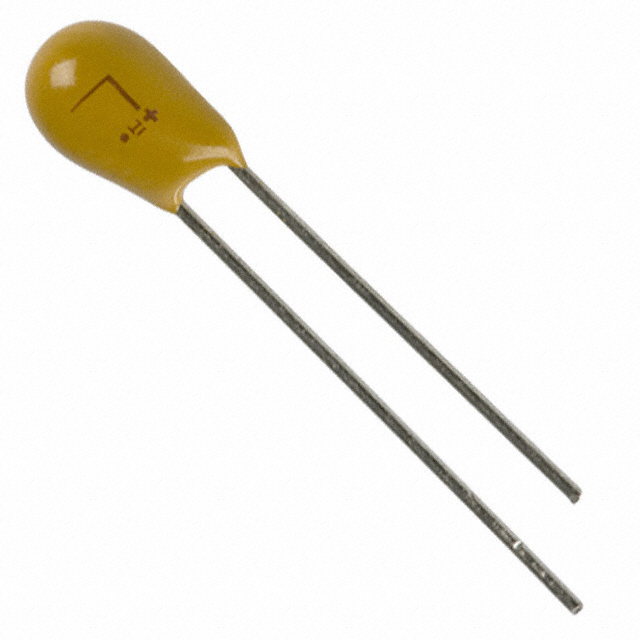

AVX TAP475K016SCS 钽电容, 4.7uF 10%容差 16V
Looking for high capacitance with a low footprint design? This tantalum solid capacitor from is what you need. Users like its straight wire form. It can withstand a voltage of 16 VDC. Its leakage current is 0.6 μA. This solid capacitor has a maximum operating temperature of 125 °C. This part has a pitch of 2.5 mm. This product is 7.5Max mm tall with a diameter of 4.5Max mm. The TAP475K016SCS solid capacitor has a radial termination style. It has a tolerance of 10%. Its capacitance value is 4.7uF.
额定电压DC 16.0 V
工作电压 16 VDC
电容 4.7 µF
等效串联电阻ESR 5 Ω
容差 ±10 %
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 16 V
安装方式 Through Hole
引脚数 2
封装 Bulk
引脚间距 2.5 mm
高度 7.5 mm
直径 4.57 mm
封装 Bulk
引脚间距 2.5 mm
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
TAP475K016SCS AVX 艾维克斯 | 当前型号 | 当前型号 |
MCDT4R7K16-1-RH Multicomp | 类似代替 | TAP475K016SCS和MCDT4R7K16-1-RH的区别 |
TAP475K035SCS 艾维克斯 | 功能相似 | TAP475K016SCS和TAP475K035SCS的区别 |
TAP475K050SCS 艾维克斯 | 功能相似 | TAP475K016SCS和TAP475K050SCS的区别 |
