16通道恒流LED灌电流驱动器 16-CHANNEL CONSTANT-CURRENT LED SINK DRIVERS
The TLC592x-Q1 Constant-Current LED Sink Drivers is designed to work alone or cascaded. Because each output is independently controlled, they can be programmed to be on or off by the user. The high LED voltage VLED allows for the use of a single LED per output or multiple LEDs on a single string. With independently controlled outputs supplied with constant current, the LEDs can be combined in parallel to create higher currents on a single string. The constant sink current for all channels is set through a single external resistor. This allows different LED drivers in the same application to sink various currents which provides optional implementation of multi-color LEDs. An additional advantage of the independent outputs is the ability to leave unused channels floating. The flexibility of the TLC592x-Q1 LED driver is ideal for applications such as but not limited to: automotive LED lighting, 7-segment displays, scrolling single color displays, gaming machines, white goods, video billboards and video panels.
频率 30 MHz
输出接口数 16
输出电压 17 V
输出电流 120 mA
供电电流 20000 mA
耗散功率 2900 W
静态电流 11.0 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 2900 mW
电源电压 3V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 3 V
输入电压 3V ~ 5.5V
安装方式 Surface Mount

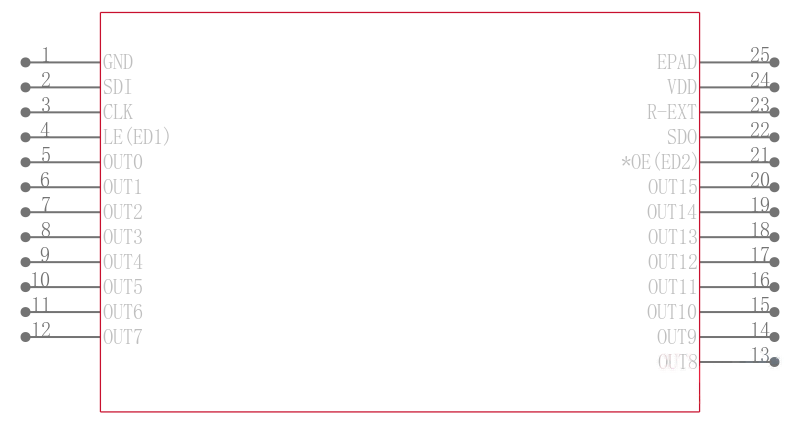

引脚数 24

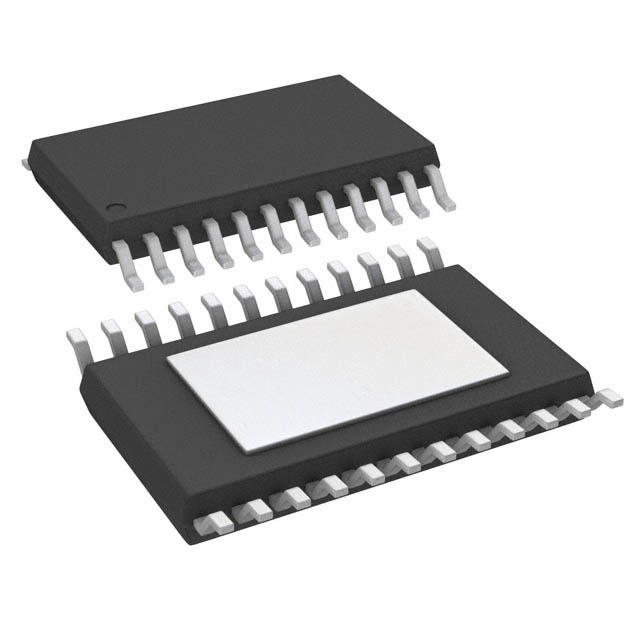

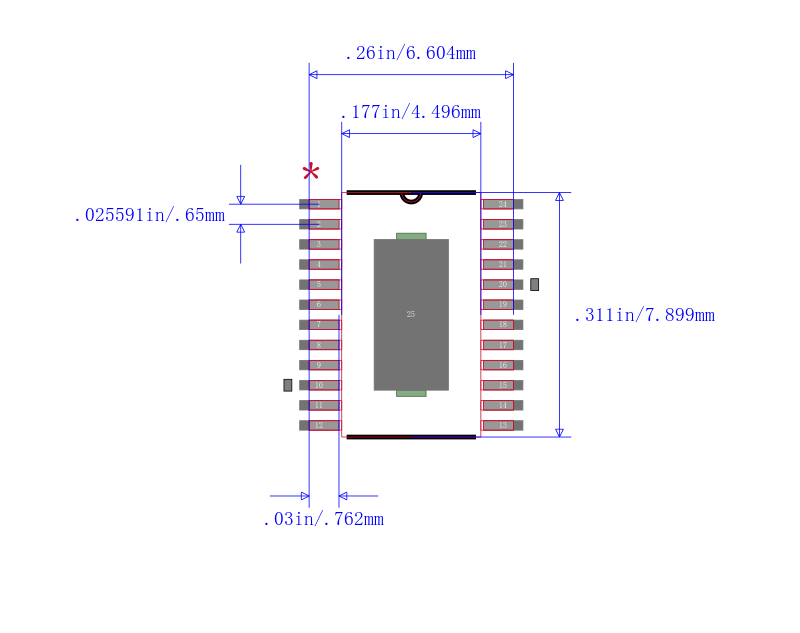

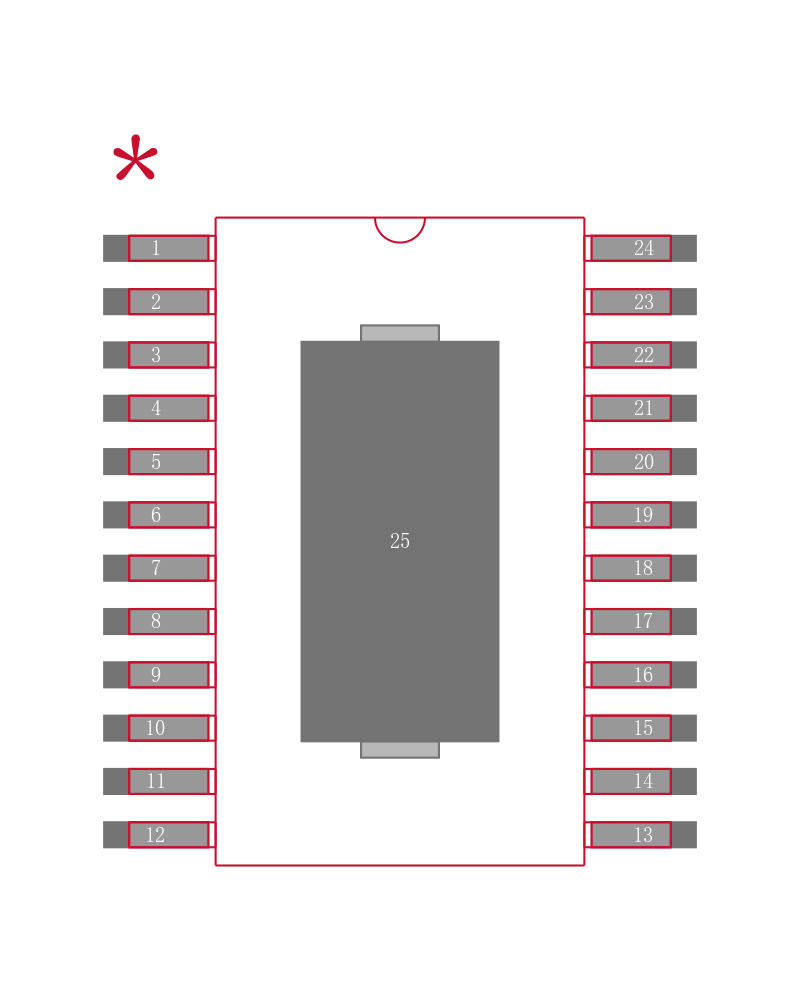

封装 HTSSOP-24
封装 HTSSOP-24
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 标牌
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TLC5926QPWPRQ1 TI 德州仪器 | 当前型号 | 当前型号 |
TLC5926IPWPRG4 德州仪器 | 完全替代 | TLC5926QPWPRQ1和TLC5926IPWPRG4的区别 |
TLC5926IPWPR 德州仪器 | 类似代替 | TLC5926QPWPRQ1和TLC5926IPWPR的区别 |
STP16CPC26MTR 意法半导体 | 功能相似 | TLC5926QPWPRQ1和STP16CPC26MTR的区别 |
