1206 47uF ±20% 4V

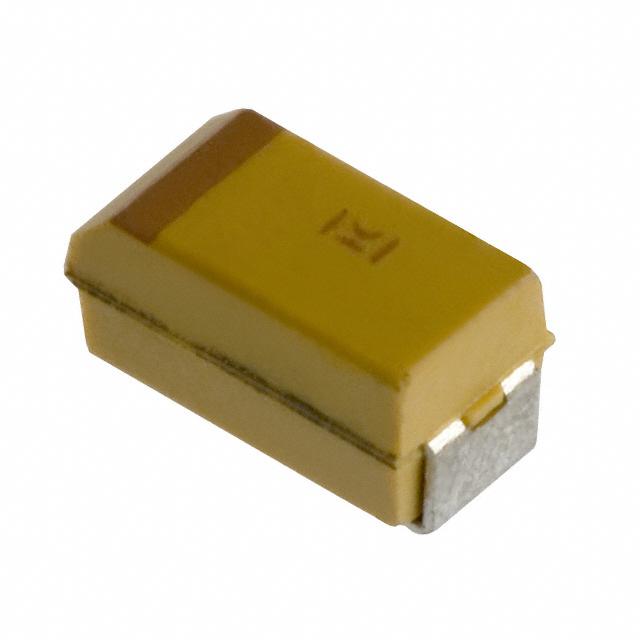

Composed from tantalum solid this capacitor manufactured from Kemet has a high capacitance compared to other capacitors. It can withstand a voltage of 4 VDC. Its leakage current is 1.9 μA. This solid capacitor has a maximum operating temperature of 125 °C. It has a tolerance of 20%. This product is 3.2 mm long, 1.6 mm tall and 1.6 mm deep. Its capacitance value is 47uF.
得捷:
CAP TANT 47UF 20% 4V 1206
立创商城:
47uF ±20% 4V
艾睿:
Composed from tantalum solid this T491A476M004AT capacitor manufactured from Kemet has a high capacitance compared to other capacitors. It can withstand a voltage of 4 VDC. Its leakage current is 1.9 μA. This solid capacitor has a maximum operating temperature of 125 °C. It has a tolerance of 20%. This product is 3.2 mm long, 1.6 mm tall and 1.6 mm deep. Its capacitance value is 47uF.
安富利:
Cap Tant Solid 47uF 4V A CASE 20% 3.2 X 1.6 X 1.6mm SMD 3216-18 2.5 Ohm 125°C T/R
Chip1Stop:
Cap Tant Solid 47uF 4V A CASE 20% 3.2 X 1.6 X 1.6mm SMD 3216-18 2.5 Ohm 125℃ T/R
Verical:
Cap Tant Solid 47uF 4V A CASE 20% 3.2 X 1.6 X 1.6mm Inward L SMD 3216-18 2.5 Ohm 125C Automotive T/R
额定电压DC 4.00 V
电容 47 µF
等效串联电阻ESR 2.5 Ω
容差 ±20 %
产品系列 T491
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 4 V
安装方式 Surface Mount
引脚数 2

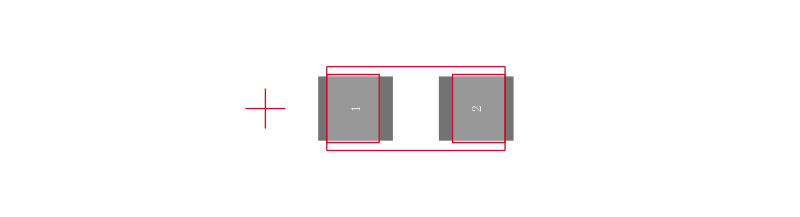

封装公制 3216-18
封装 3216

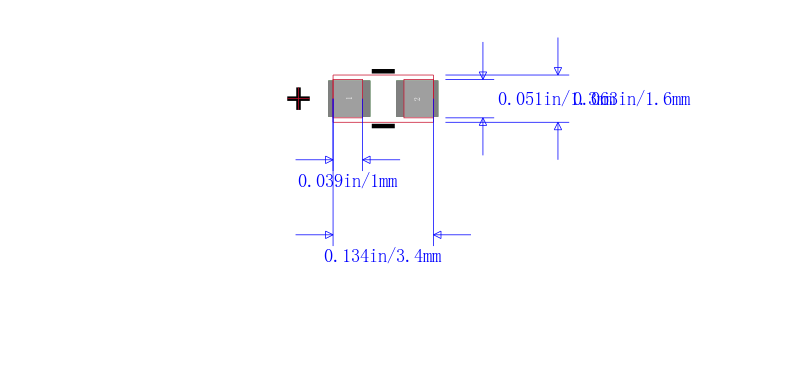

长度 3.20 mm
宽度 1.6 mm
高度 1.6 mm
封装公制 3216-18
封装 3216
介质材料 Tantalum
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 2000
寿命(小时) 2000h @125℃
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
T491A476M004AT KEMET Corporation 基美 | 当前型号 | 当前型号 |
T491A476K004AT 基美 | 类似代替 | T491A476M004AT和T491A476K004AT的区别 |
T494A476M006AT 基美 | 功能相似 | T491A476M004AT和T494A476M006AT的区别 |
T491A476M004AS 基美 | 功能相似 | T491A476M004AT和T491A476M004AS的区别 |
