300MHz的单电源视频放大器，具有低输入，输出铁 300MHz Single Supply Video Amplifier with Low In,Out Rail
Increase functionality to your signal processing circuit with this general purpose amplifier OP amp from STMicroelectronics. Its maximum power dissipation is 500 mW. This op amp has a minimum operating temperature of -40 °C and a maximum of 85 °C. This device uses a single power supply. It has a single channel per chip.
得捷:
IC AMP GENERAL PURPOSE SOT23-5
贸泽:
Video Amplifiers 300MHz Sngl Supply Video Amp
艾睿:
OP Amp Single GP R-R I/O 5.5V 5-Pin SOT-23 T/R
Chip1Stop:
OP Amp Single GP R-R I/O 5.5V 5-Pin SOT-23 T/R
Verical:
OP Amp Single GP R-R I/O 5.5V 5-Pin SOT-23 T/R
DeviceMart:
IC AMP VIDEO SGL 300MHZ SOT23-5
Win Source:
IC AMP VIDEO SGL 300MHZ SOT23-5
供电电流 9.8 mA
电路数 1
通道数 1
耗散功率 500 mW
共模抑制比 60 dB
输入补偿电压 15 mV
输入偏置电流 16000 nA
工作温度Max 85 ℃
工作温度Min -40 ℃
3dB带宽 300 MHz
增益带宽 60 dB
耗散功率Max 500 mW
电源电压Max 5.5 V
电源电压Min 3 V
安装方式 Surface Mount
引脚数 5

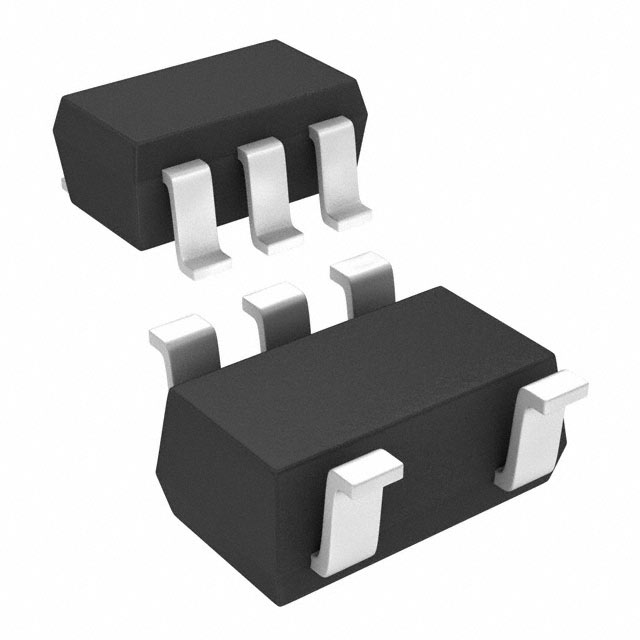

封装 SOT-23-5
长度 3 mm
宽度 1.75 mm
高度 1.3 mm
封装 SOT-23-5
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
