2.5 V 460 - kbps的RS - 232收发器,具有± 15 kV ESD保护 2.5-V 460-kbps RS-232 TRANSCEIVER WITH ±15-kV ESD PROTECTION
The TRS3318E is a dual-driver, dual-receiver, RS-232-compatible transceiver. The device features auto-powerdown plus and enhanced electrostatic discharge ESD protection integrated into the chip. Driver output and receiver input are protected to ±15 kV using the IEC 61000-4-2 Air-Gap Discharge method, ±8 kV using the IEC 61000-4-2 Contact Discharge method, and ±15 kV using the Human-Body Model HBM.
The device operates at a data rate of 460 kbps. The transceiver has a proprietary low-dropout driver output stage, enabling RS-232-compatible operation from a 2.25-V to 3-V supply with a dual charge pump. The charge pump requires only four 0.1-µF capacitors and features a logic-level output READY that asserts when the charge pump is regulating and the device is ready to begin transmitting.
The TRS3318E achieves a 1-µA supply current using the auto-powerdown feature. This device automatically enters a low-power power-down mode when the RS-232 cable is disconnected or the drivers of the connected peripherals are inactive for more than 30 s. The device turns on again when it senses a valid transition at any driver or receiver input. Auto-powerdown saves power without changes to the existing BIOS or operating system.
This device is available in two space-saving packages: 20-pin SSOP and 20-pin TSSOP.
电源电压DC 2.25V ~ 3.00V
供电电流 2 mA
数据速率 460 kbps
驱动器/包 2
工作温度Max 70 ℃
工作温度Min 0 ℃
电源电压 2.25V ~ 3V
电源电压Max 3 V
电源电压Min 2.25 V
安装方式 Surface Mount
引脚数 20

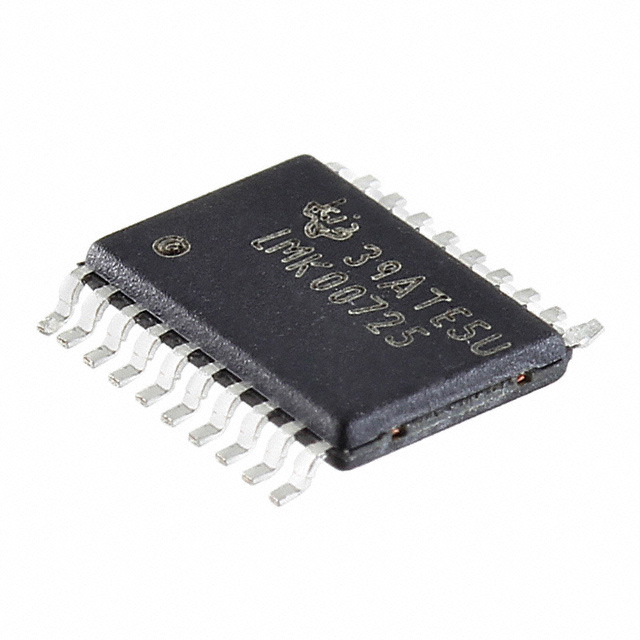

封装 TSSOP-20
长度 6.5 mm
宽度 4.4 mm
高度 1 mm
封装 TSSOP-20
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TRS3318ECPWR TI 德州仪器 | 当前型号 | 当前型号 |
MAX3318ECPW 德州仪器 | 完全替代 | TRS3318ECPWR和MAX3318ECPW的区别 |
MAX3318CPW 德州仪器 | 完全替代 | TRS3318ECPWR和MAX3318CPW的区别 |
TRS3318ECPW 德州仪器 | 完全替代 | TRS3318ECPWR和TRS3318ECPW的区别 |
