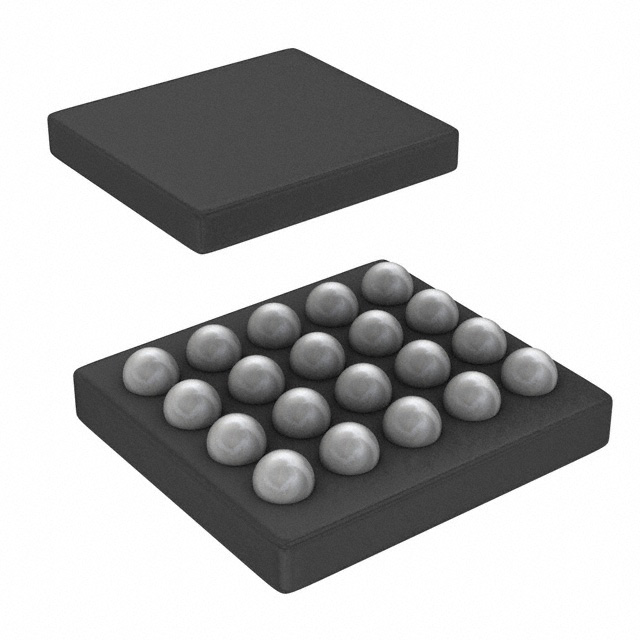

TPS61325YFFT

1.5A / 4.1A多个LED相机闪光灯驱动器，带有I2C？兼容接口 1.5A/4.1A Multiple LED Camera Flash Driver With I2CTM Compatible Interface

The TPS6132x device is based on a high-frequency synchronous boost topology with constant current sinks to drive up to three white LEDs in parallel 445-mA, 890-mA, 445-mA maximum flash current. The extended high-current mode HC_SEL allows up to 1025-mA, 2050-mA, and 1025-mA flash current out of the storage capacitor.

The high-capacity storage capacitor on the output of the boost regulator provides the high-peak flash LED current, thereby reducing the peak current demand from the battery to a minimum.

The 2-MHz switching frequency allows the use of small and low profile 2.2-μH inductors. To optimize overall efficiency, the device operates with a 400-mV LED feedback voltage.

The TPS6132x device not only operates as a regulated current source, but also as a standard voltage boost regulator. The device keeps the output voltage regulated even when the input voltage exceeds the nominal output voltage. The device enters power-save mode operation at light load currents to maintain high efficiency over the entire load current range.

To simplify DC-light and flashlight synchronization with the camera module, the device offers a dedicated control interface STRB0 and STRB1 pins for zero latency LED turnon time.
