WLED驱动器,用于笔记本电脑显示器 WLED DRIVER FOR NOTEBOOK DISPLAY
* 5 V to 24 V Input Voltage * Integrated 1.5 A 40 V MOSFET * 1.0 MHz/1.3 MHz Switching Frequency * Boost Output Auto-Adaptive to WLED Voltages * Small External Components * Integrated Loop Compensation * Six Current Sink of 25 mA * Up to 10 WLED in Series * Less Than 3% Current Matching and Accuracy * Up to 1000:1 PWM Brightness DImming Range * Minimized Output Ripple Under PWM Dimming * Driver for Input/Output Isolation PFET * True Shutdown * Over Voltage Protection * WLED Open/Short Protection * Built-in Soft Start * 16L 3 mm×3 mm QFN
频率 1 MHz
输出接口数 6
输入电压DC 5.00V ~ 24.0V
输出电压 38 V
输出电流 1.5 A
耗散功率 2050 mW
静态电流 2.00 mA
拓扑结构 Boost
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 2050 mW
电源电压 5V ~ 24V
输入电压 5V ~ 24V
安装方式 Surface Mount
引脚数 16

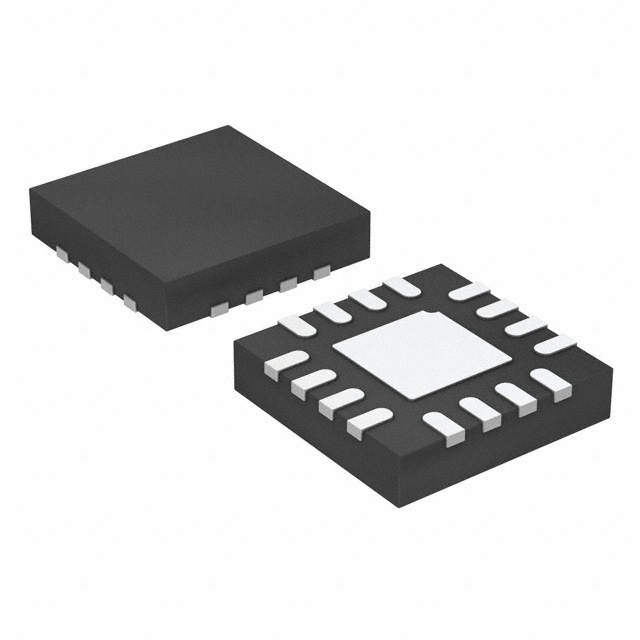

封装 WQFN-16
封装 WQFN-16
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS61180RTET TI 德州仪器 | 当前型号 | 当前型号 |
TPS61180RTER 德州仪器 | 完全替代 | TPS61180RTET和TPS61180RTER的区别 |
TPS61180RTERG4 德州仪器 | 类似代替 | TPS61180RTET和TPS61180RTERG4的区别 |
TPS61180RTETG4 德州仪器 | 类似代替 | TPS61180RTET和TPS61180RTETG4的区别 |
