与线性稳压器和VCOM缓冲器三输出LCD电源 TRIPLE-OUTPUT LCD SUPPLY WITH LINEAR REGULATOR AND VCOM BUFFER
The is a compact Power Supply IC that provides all three voltages required by thin-film transistor TFT LCD displays. The auxiliary linear regulator controller can be used to generate a 3.3V logic power rail for systems powered by a 5-V supply rail only. The main output, VO1, is a 1.6MHz fixed-frequency PWM boost converter providing the source-drive voltage for the LCD display. A fully integrated adjustable charge pump doubler/tripler provides the positive LCD gate-drive voltage. An externally adjustable negative charge pump provides the negative gate-drive voltage. The device can be enabled again by toggling the input or the enable EN pin to GND.
频率 2.1 MHz
电源电压DC 2.70V min
输出接口数 4
针脚数 24
耗散功率 3300 W
静态电流 700 µA
调节输出数 4
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 3300 mW
电源电压Max 5.8 V
电源电压Min 2.7 V
输入电压 2.7V ~ 5.8V
安装方式 Surface Mount
引脚数 24

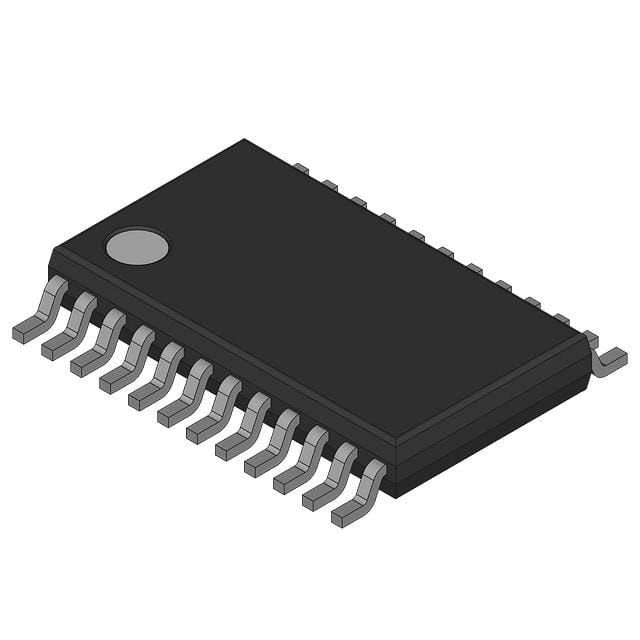

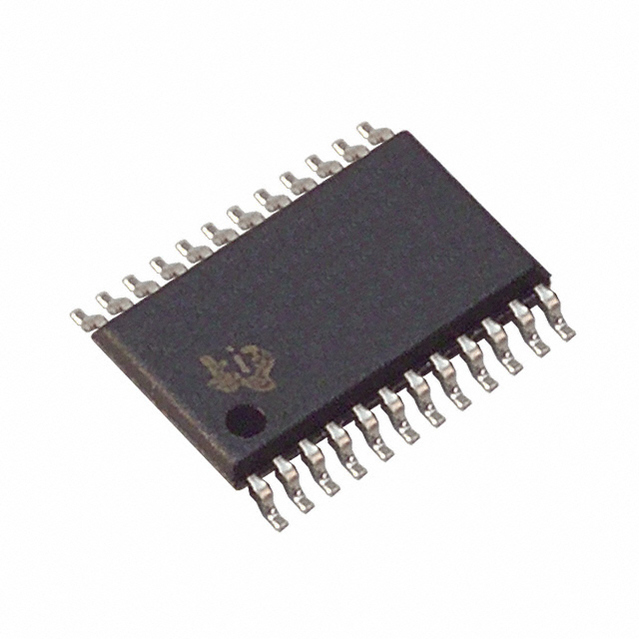

封装 HTSSOP-24
封装 HTSSOP-24
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 视频和目视, 成像, 电源管理, 车用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
