TLC5922DAPRG4

LED显示驱动器 LED Driver with Dot Correction

DESCRIPON

The TLC5922 is a 16-channel constant-current sink driver. Each channel has an On/Off state and a 128-step adjustable constant-current sink dot correction. The dot correction adjusts the brightness variations between LED, LED channels, and other LED drivers. Both dot correction and On/Off state are accessible via a serial data interface. A single external resistor sets the maximum current of all 16 channels.

FEATURES

• 16 Channels

• Drive Capability

   – 0 to 80 mA Constant-Current Sink

• Constant Current Accuracy

   – ±1% typical

• Serial Data Interface, SPI Compatible

• Fast Switching Output: Tr / Tf = 10ns typical

• CMOS Level Input/Output

• 30 MHz Data Transfer Rate

• VCC = 3.0 V to 5.5 V

• Operating Temperature = –20°C to 85 °C

• LED Supply Voltage up to 17 V

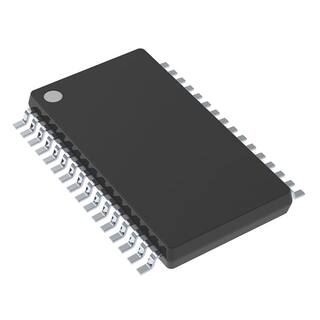

• 32-pin HTSSOP PowerPAD™ Package

• Dot Correction

   – 7 bit 128 Steps

   – Individually Adjustable For Each Channel

• Controlled In-Rush Current

APPLICATIONS

• Monocolor, Multicolor, Fullcolor LED Display

• Monocolor, Multicolor LED Signboard

• Display Backlighting

• Multicolor LED Lighting Applications
