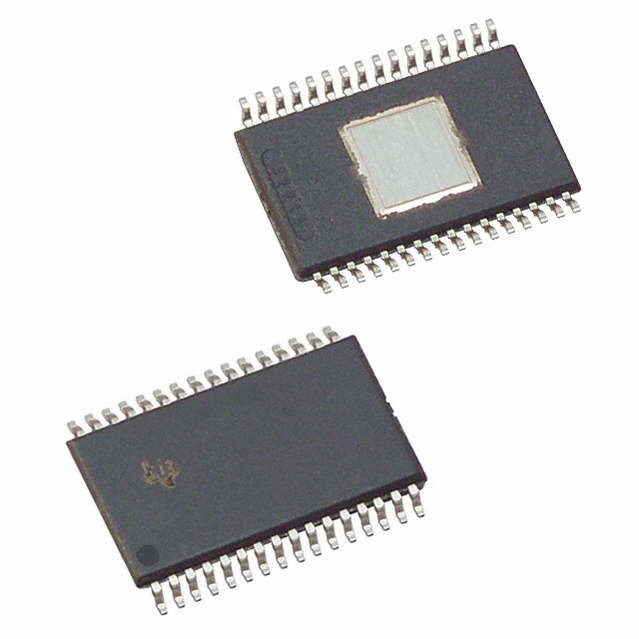

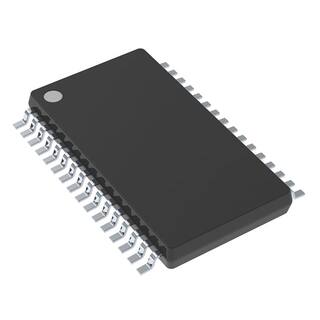

TEXAS INSTRUMENTS TLC5922DAPG4 发光二极管驱动器, 16输出, 恒流, 3V-5.5V输入, 30MHz开关, 17V/80mA输出, TSSOP-32
The is a 16-channel constant-current LED Sink Driver with DOT correction. Each channel has an on/off state and a 128-step adjustable constant-current sink dot correction. The dot correction adjusts the brightness variations between LED, LED channels and other LED driver. Both dot correction and on/off state are accessible via a serial data interface. A single external resistor sets the maximum current of all 16 channels.
- .
- Serial data interface, SPI compatible
- .
- CMOS level input/output
- .
- Controlled in-rush current
- .
- ±1% Typical constant current accuracy
- .
- 10ns Typical fast switching output
- .
- Green product and no Sb/Br
频率 30 MHz
输出接口数 16
输入电压DC 3.00V ~ 5.50V
输出电压 17 V
输出电流 80 mA
供电电流 65000 mA
针脚数 32
耗散功率 3900 W
开关频率 30 MHz
输入电压Max 5.5 V
输入电压Min 3 V
输出电压Max 17 V
输出电流Max 80 mA
工作温度Max 85 ℃
工作温度Min -20 ℃
耗散功率Max 3900 mW
电源电压 3V ~ 5.5V
安装方式 Surface Mount
引脚数 32
封装 HTSSOP-32
封装 HTSSOP-32
工作温度 -20℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tube
制造应用 发光二极管照明, 视频和目视, 成像
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
TLC5922DAPG4 TI 德州仪器 | 当前型号 | 当前型号 |
TLC5922DAP 德州仪器 | 完全替代 | TLC5922DAPG4和TLC5922DAP的区别 |
TLC5922DAPR 德州仪器 | 完全替代 | TLC5922DAPG4和TLC5922DAPR的区别 |
TLC5922DAPRG4 德州仪器 | 完全替代 | TLC5922DAPG4和TLC5922DAPRG4的区别 |
