TSC2007IPWRQ1

1.2V至3.6V ， 12位，纳安级，4线微型触摸屏控制器I2Câ ?? ¢接口 1.2V to 3.6V, 12-Bit, Nanopower, 4-Wire Micro TOUCH SCREEN CONTROLLER with I2C™ Interface

DESCRIPON

The TSC2007-Q1 is a very low-power touch screen controller designed to work with power-sensitive, handheld applications that are based on an advanced low-voltage processor. It works with a supply voltage as low as 1.2V, which can be supplied by a single-cell battery. It contains a complete, ultra-low power, 12-bit, analog-to-digital A/D resistive touch screen converter, including drivers and the control logic to measure touch pressure.

FEATURES

• Qualified for Automotive Applications

• 4-Wire Touch Screen Interface

• Single 1.2 V to 3.6 V Supply/Reference

• Ratiometric Conversion

• Effective Throughput Rate:

   – Up to 20 kHz 8-Bit or 10 kHz 12-Bit

• Preprocessing to Reduce Bus Activity

• I2C Interface Supports:

   – Standard, Fast, and High-Speed Modes

• Simple, Command-Based User Interface:

   – TSC2003-Q1 Compatible

   – 8- or 12-Bit Resolution

• On-Chip Temperature Measurement

• Touch Pressure Measurement

• Digital Buffered PENIRQ

• On-Chip, Programmable PENIRQ Pull-Up

• Auto Power-Down Control

• Low Power:

   – 32.24 μA at 1.2 V, Fast Mode, 8.2 kHz Eq Rate

   – 39.31 μA at 1.8 V, Fast Mode, 8.2 kHz Eq Rate

   – 53.32 μA at 2.7 V, Fast Mode, 8.2 kHz Eq Rate

• Enhanced ESD Protection:

   – ±8 kV HBM

   – ±1 kV CDM

   – ±25 kV Air Gap Discharge

   – ±15 kV Contact Discharge

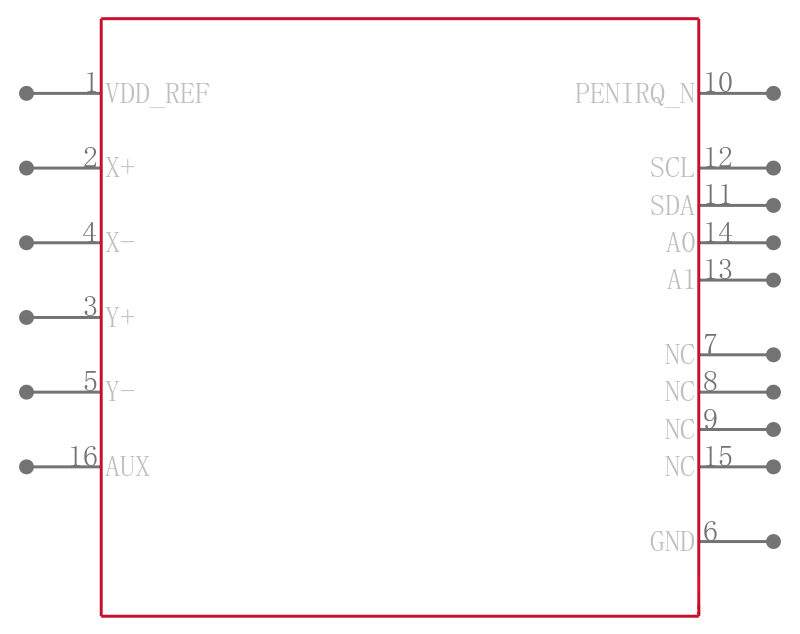

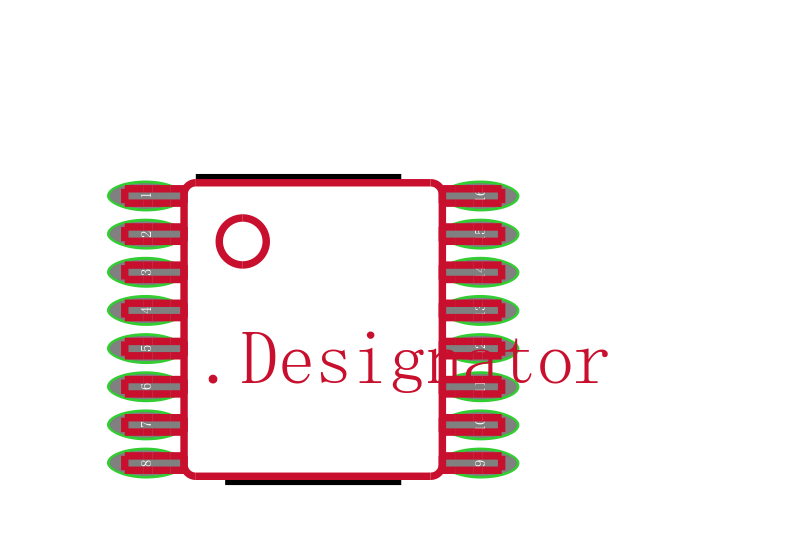

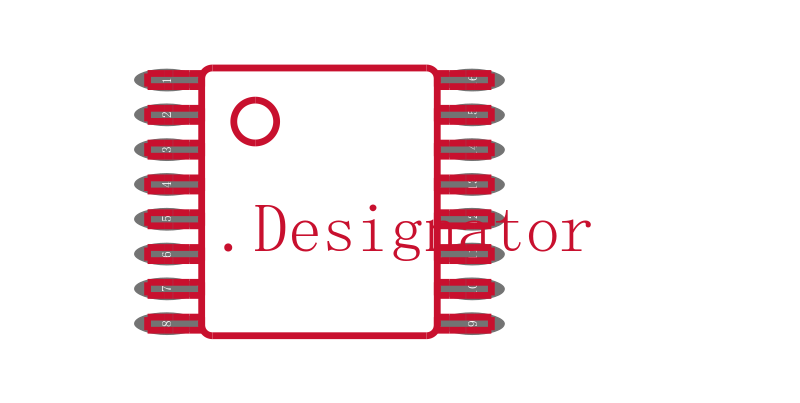

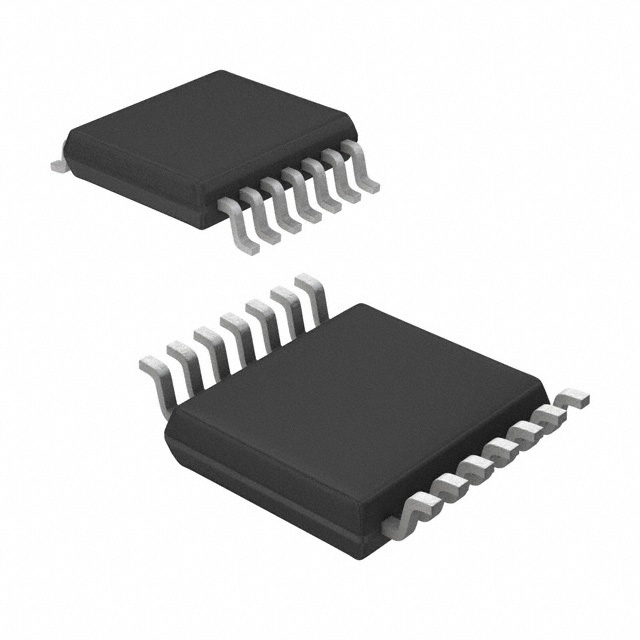

• 5 x 6.4 TSSOP-16 Package

APPLICATIONS

• Media Players

• Multiscreen Touch Control Systems
