具有 I2C™ 兼容接口和 LED 温度监控功能、支持驱动多个摄像机闪光灯的 1.5A/4.1A 驱动器 20-DSBGA -40 to 85
The TPS6130xx device is based on a high-frequency synchronous boost topology with constant current sinks to drive up to three white LEDs in parallel 400-mA, 800-mA, and 400-mA maximum flash current. The extended high-current mode HC_SEL allows up to 1025-mA, 2050-mA, and 1025-mA flash current out of the storage capacitor.
The high-capacity storage capacitor on the output of the boost regulator provides the high-peak flash LED current, thereby reducing the peak current demand from the battery to a minimum.
The 2-MHz switching frequency allows the use of small and low profile 2.2-µH inductors. To optimize overall efficiency, the device operates with a 400-mV LED feedback voltage.
The TPS6130xx device not only operates as a regulated current source, but also as a standard voltage boost regulator. The device keeps the output voltage regulated even when the input voltage exceeds the nominal output voltage. The device enters power-save mode operation at light load currents to maintain high efficiency over the entire load current range.
To simplify flashlight synchronization with the camera module, the device offers a trigger pin FLASH_SYNC for zero latency LED turnon time.
频率 1.92 MHz
输出接口数 3
输出电压 5.7 V
输出电流 1.5 A
静态电流 590 µA
调节输出数 1
拓扑结构 Boost
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2.5 V
输入电压 2.5V ~ 5.5V
安装方式 Surface Mount
引脚数 20

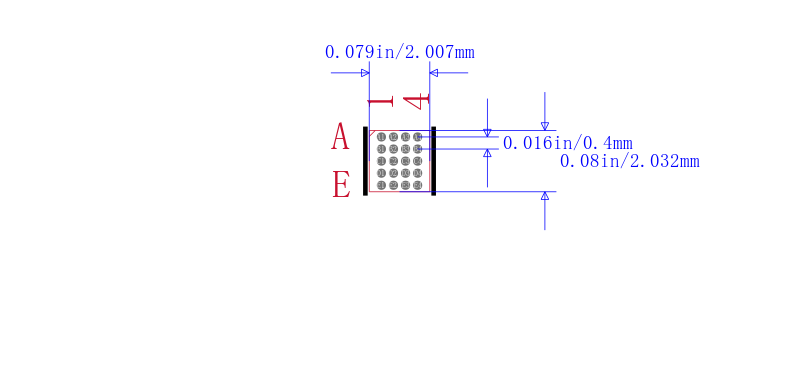

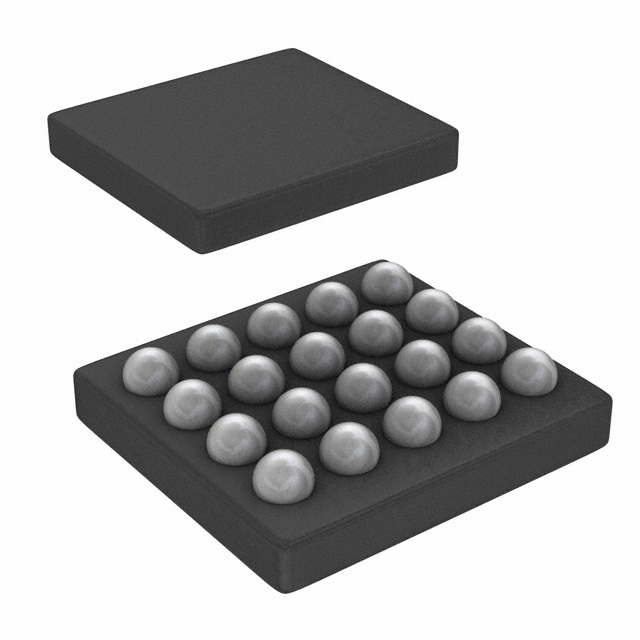

封装 DSBGA-20
封装 DSBGA-20
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 照相机闪光灯
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS61305YFFT TI 德州仪器 | 当前型号 | 当前型号 |
TPS61305YFFR 德州仪器 | 完全替代 | TPS61305YFFT和TPS61305YFFR的区别 |
