TPSC475K035R0600

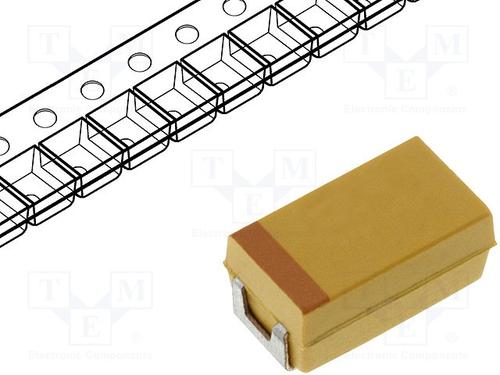

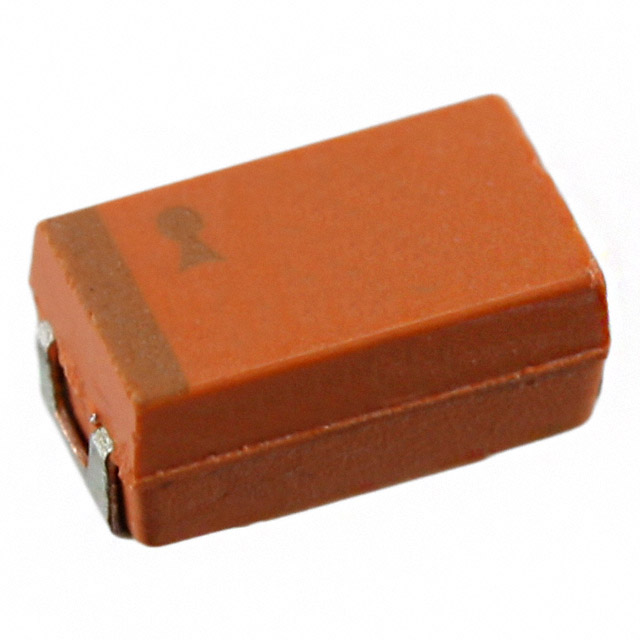

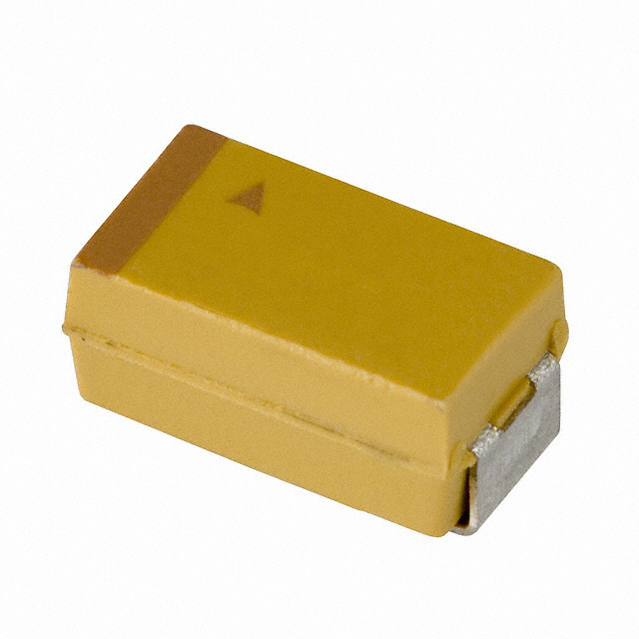

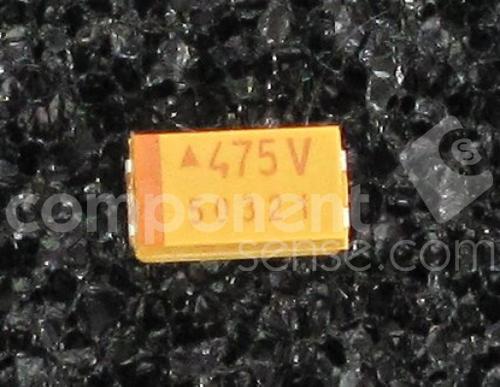

AVX  TPSC475K035R0600  表面贴装钽电容, TPS系列, 4.7 µF, ± 10%, 35 V, 2312 [6032 公制], C

钽器

欧时:

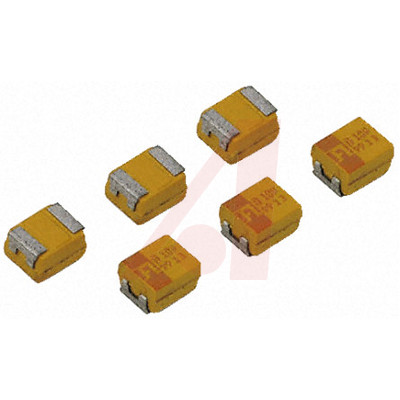

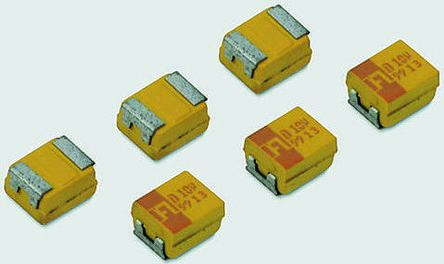

### TPS 系列 20 至 50V 直流AVX 的 TPS 系列低 ESR 贴片式电容器，设计主要用于电源应用。 TPS 系列电容器提供 14 种不同的外壳尺寸。低 ESR（等效串联电阻） 高波纹电流能力 低功率和热消散 尺寸 mm ---   | L | W | H | W1 | A 外壳代码 | +-0.2 | +-0.2 | +-0.2 | +-0.2 | +-0.3-0.2 A | 3.2 | 1.6 | 1.6 | 1.2 | 0.8 B | 3.5 | 2.8 | 1.9 | 2.2 | 0.8 C | 6 | 3.2 | 2.6 | 2.2 | 1.3 D | 7.3 | 4.3 | 2.9 | 2.4 | 1.3 E | 7.3 | 4.3 | 4.1 | 2.4 | 1.3 V | 7.3 | 6.1 | 3.45 | 3.1 | 1.4 W | 6 | 3.2 | 1.5 | 2.2 | 1.3 ![http://china.rs-online.com/largeimages/L405941-01.gif]http://china.rs-online.com/largeimages/L405941-01.gif ### SMT 125°C

e络盟:
表面贴装钽电容, 4.7 µF, 35 V, 2312 [6032 公制], TPS系列, ± 10%, -55 °C

艾睿:
Need a high capacitance value with a low footprint design? Look no further this TPSC475K035R0600 tantalum solid capacitor from AVX will get you results. It can withstand a voltage of 35 VDC. This solid capacitor has a maximum operating temperature of 125 °C. Its leakage current is 1.6 μA. This product is 6 mm long, 2.6 mm tall and 3.2 mm deep. It has a tolerance of 10%. Its capacitance value is 4.7uF.

Allied Electronics:
Capacitor; Tantalum; Cap 4.7 uF; Tol 10%; Vol-Rtg 35 VDC; SMT; 6032; ESR 600 mOhms; CT

安富利:
Cap Tant Solid 4.7uF 35V C CASE 10% 6 X 3.2 X 2.6mm SMD 6032-28 0.6 Ohm 125°C T/R

Chip1Stop:
Cap Tant Solid 4.7uF 35V C CASE 10% 6 X 3.2 X 2.6mm SMD 6032-28 T/R

TME:
Capacitor: tantalum; low ESR; 4.7uF; 35VDC; Case: C; 2312; ESR:600mΩ

Verical:
Cap Tant Solid 4.7uF 35V C CASE 10% 6 X 3.2 X 2.6mm Inward L SMD 6032-28 0.6 Ohm 125C T/R

Newark:
# AVX  TPSC475K035R0600  Surface Mount Tantalum Capacitor, 4.7 µF, 35 V, TPS Series, ± 10%, 2312 [6032 Metric]

儒卓力:
**TC 4,7uF 35V 10% Case C 600mOhm **

Win Source:
CAP TANT 4.7UF 35V 10% 2312
