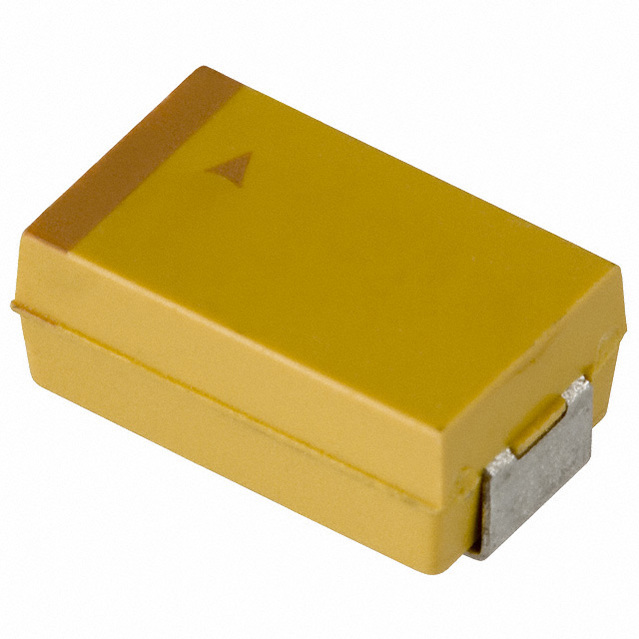

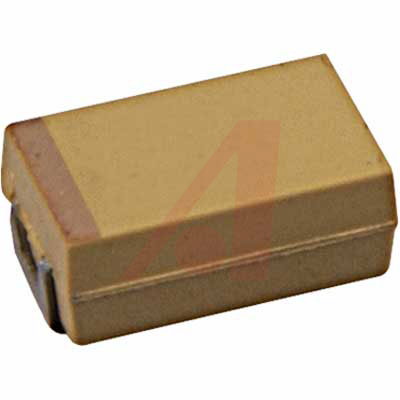

TPS 系列 100 uF ±20 % 10 V 表面贴装 低ESR 钽贴片电容
TPS surface mount products have inherently low ESR equivalent series resistance and are capable of higher ripple current handling, producing lower ripple voltages, less power and heat dissipation than standard product for the most efficient use of circuit power.
欧时:
Tantalum Capacitor 2917 100uF 10Vdc 20%
立创商城:
TPSD107M010R0080
贸泽:
Tantalum Capacitors - Solid SMD 100uF 10V 20% L ESR
e络盟:
表面贴装钽电容, 100 µF, 10 V, 2917 [7343 公制], TPS Series, ± 20%, -55 °C
艾睿:
Cap Tant Solid 100uF 10V D CASE 20% 7.3 X 4.3 X 2.9mm Inward L SMD 7343-31 0.08 Ohm 125°C T/R
Allied Electronics:
Capacitor; Tantalum; Cap 100 uF; Tol 20%; Vol-Rtg 10 VDC; SMT; 7343; Low ESR; Tape&Reel
安富利:
Cap Tant Solid 100uF 10V D CASE 20% 7.3 X 4.3 X 2.9mm SMD 7343-31 0.08 Ohm 125°C T/R
Chip1Stop:
Cap Tant Solid 100uF 10V D CASE 20% 7.3 X 4.3 X 2.9mm Inward L SMD 7343-31 0.08 Ohm 125C T/R
Verical:
Cap Tant Solid 100uF 10V D CASE 20% 7.3 X 4.3 X 2.9mm Inward L SMD 7343-31 0.08 Ohm 125C T/R
Newark:
# AVX TPSD107M010R0080 Surface Mount Tantalum Capacitor, 100 µF, 10 V, TPS Series, ± 20%, 2917 [7343 Metric]
儒卓力:
**TC 100uF 10V 20% Case D 80mOhm **
Win Source:
CAP TANT 100UF 10V 20% 2917
额定电压DC 10.0 V
电容 100 µF
等效串联电阻ESR 80 mΩ
容差 ±20 %
纹波电流 0.548 mA
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 10 V
安装方式 Surface Mount
引脚数 2
封装 7343
长度 7.3 mm
宽度 4.3 mm
高度 2.9 mm
封装 7343
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 500
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPSD107M010R0080 AVX 艾维克斯 | 当前型号 | 当前型号 |
TPSD107M010Y0080 艾维克斯 | 完全替代 | TPSD107M010R0080和TPSD107M010Y0080的区别 |
TPSD107M010S0080 艾维克斯 | 完全替代 | TPSD107M010R0080和TPSD107M010S0080的区别 |
TR3D107M010C0080 威世 | 完全替代 | TPSD107M010R0080和TR3D107M010C0080的区别 |
