具有关断功能的 175mA、+/-12V ADSL CPE 和 PLC 线路驱动器 14-HTSSOP -40 to 85
The THS6052/3 is a high-speed line driver ideal for driving signals from the remote terminal to the central office in asymmetrical digital subscriber line ADSL applications. It can operate from ±12-V supply voltages while drawing only 5.2 mA of supply current per channel. It offers low 83 dBc total harmonic distortion driving a 100- load from a ±12-V supply. The THS6053 features a low-power shutdown mode, consuming only 300 uA quiescent current per channel. The THS6052/3 is packaged in a standard SOIC, SOIC PowerPAD, and TSSOP PowerPAD packages.
通道数 2
耗散功率 3300 mW
输入补偿漂移 30.0 µV/K
转换速率 1.70 kV/μs
增益频宽积 170 MHz
可用通道 D
工作温度Max 85 ℃
工作温度Min -40 ℃
3dB带宽 170 MHz
耗散功率Max 3300 mW
共模抑制比Min 59 dB
电源电压 5V ~ 15V
安装方式 Surface Mount
引脚数 14

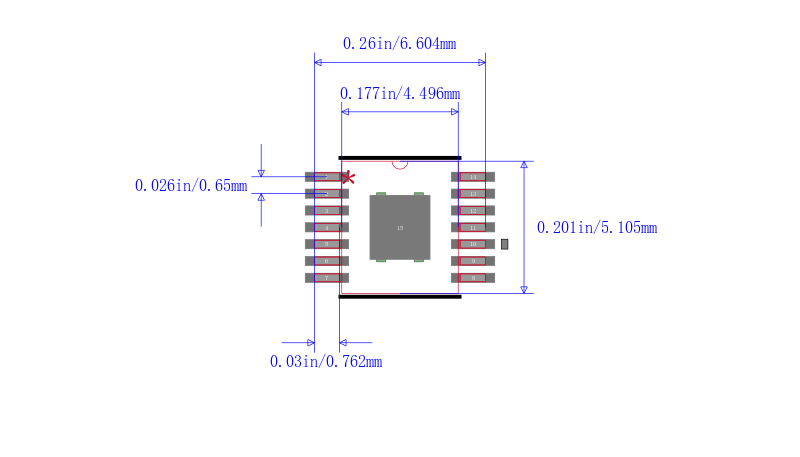

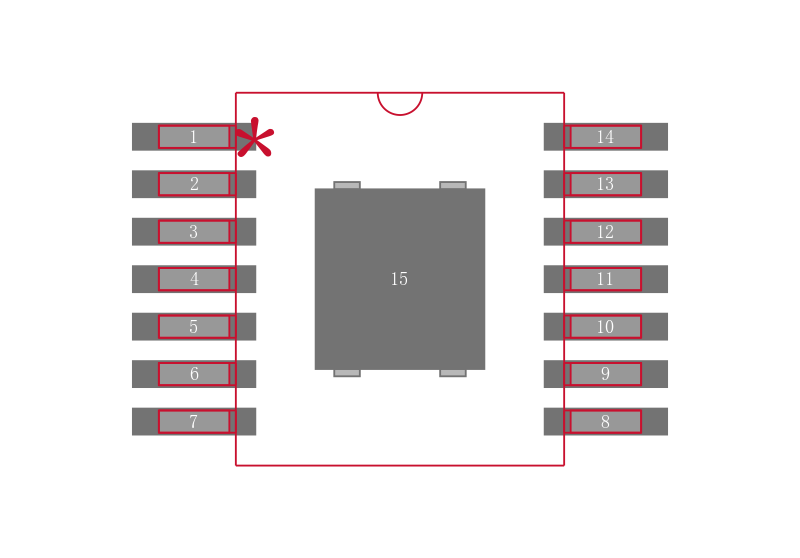

封装 HTSSOP-14
封装 HTSSOP-14
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
THS6053IPWP TI 德州仪器 | 当前型号 | 当前型号 |
THS6053CPWP 德州仪器 | 完全替代 | THS6053IPWP和THS6053CPWP的区别 |
THS6053IPWPRG4 德州仪器 | 完全替代 | THS6053IPWP和THS6053IPWPRG4的区别 |
THS6053CPWPR 德州仪器 | 类似代替 | THS6053IPWP和THS6053CPWPR的区别 |
