TEXAS INSTRUMENTS TPS3700DDCR 芯片, 比较器, 漏极开路, SOT-23-6, 整卷
The TPS3700 wide-supply voltage window comparator operates over a 1.8-V to 18-V range. The device has two high-accuracy comparators with an internal 400-mV reference and two open-drain outputs rated to 18 V for over- and undervoltage detection. The TPS3700 can be used as a window comparator or as two independent voltage monitors; the monitored voltage can be set with the use of external resistors.
OUTA is driven low when the voltage at INA+ drops below VITP VHYS, and goes high when the voltage returns above the respective threshold VITP. OUTB is driven low when the voltage at INB rises above VITP, and goes high when the voltage drops below the respective threshold VITP VHYS. Both comparators in the TPS3700 include built-in hysteresis for filtering to reject brief glitches, thereby ensuring stable output operation without false triggering.
The TPS3700 is available in a SOT-6 and a 1.5-mm × 1.5-mm WSON-6 package and is specified over the junction temperature range of 40°C to 125°C.
输出电流 ≤40 mA
供电电流 7.00 µA
电路数 1
通道数 1
针脚数 6
静态电流 5.50 µA
复位电压Min Adjustable
复位电压Max Adjustable
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 1.8V ~ 18V
安装方式 Surface Mount

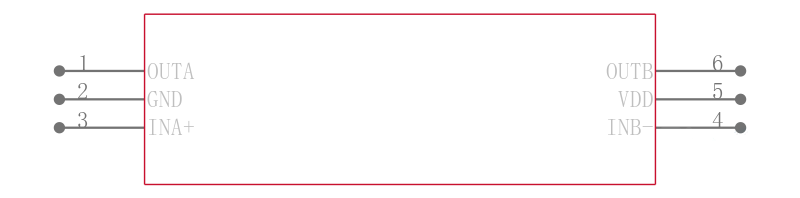

引脚数 6

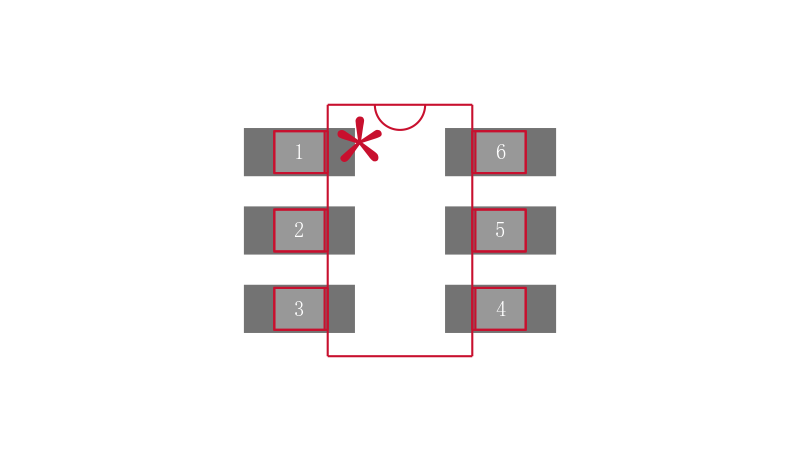

封装 TSOT-23-6
封装 TSOT-23-6
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 医用, 军用与航空, 国防, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
军工级 Yes
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS3700DDCR TI 德州仪器 | 当前型号 | 当前型号 |
TPS3700DDCT 德州仪器 | 类似代替 | TPS3700DDCR和TPS3700DDCT的区别 |
TPS3700DDCR2 德州仪器 | 类似代替 | TPS3700DDCR和TPS3700DDCR2的区别 |
