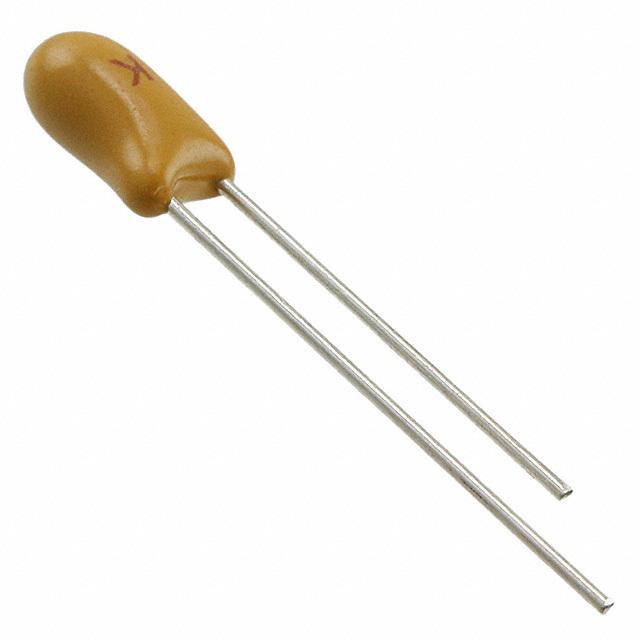

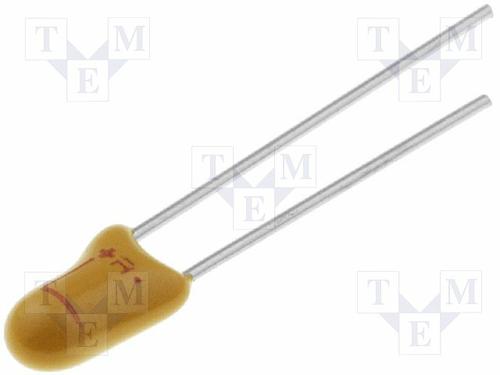

TAP 系列 6.8 uF ±10 % 16 V 径向 固体 树脂 浸胶 钽电容
This solid tantalum capacitor from will hold its charge for a long period of time due to its low leakage current characteristic. Users like its straight wire form. It can withstand a voltage of 16 VDC. Its leakage current is 0.8 μA. This solid capacitor has a maximum operating temperature of 125 °C. This part has a pitch of 2.5 mm. It has a tolerance of 10%. The TAP685K016SCS solid capacitor has a radial termination style. Its capacitance value is 6.8uF. This product is 8.5Max mm tall with a diameter of 5Max mm.
额定电压DC 16 V
工作电压 16 VDC
电容 6.8 µF
等效串联电阻ESR 4 Ω
容差 ±10 %
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 16 V
安装方式 Through Hole
引脚数 2
封装 Radial
长度 8.5 mm
高度 8.5 mm
直径 5.08 mm
封装 Radial
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
TAP685K016SCS AVX 艾维克斯 | 当前型号 | 当前型号 |
TAP685K016DTS 艾维克斯 | 功能相似 | TAP685K016SCS和TAP685K016DTS的区别 |
TAP685K016DTW 艾维克斯 | 功能相似 | TAP685K016SCS和TAP685K016DTW的区别 |
