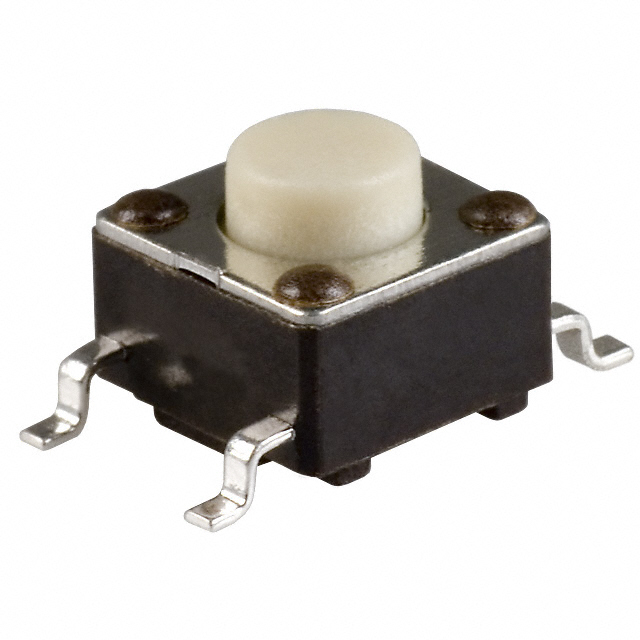

E-SWITCH TL3301AF260QG 轻触开关, 260gf
Switch Tactile N.O. SPST Round Button Gull Wing 0.05A 12VDC 100000Cycles 2.55N SMD T/R
立创商城:
TL3301AF260QG
得捷:
SWITCH TACTILE SPST-NO 0.05A 12V
e络盟:
轻触开关, 260gf
Chip1Stop:
Switch Tactile N.O. SPST Round Button Gull Wing 0.05A 12VDC 100000Cycles 2.55N SMD T/R
Verical:
Switch Tactile N.O. SPST Round Button Gull Wing 0.05A 12VDC 100000Cycles 2.55N SMD T/R
Newark:
# E-SWITCH TL3301AF260QG Tactile Switch, Non Illuminated, 12 V, 50 mA, 260 gf, SMD, TL3301 Series
MASTER:
Switch Tactile N.O. SPST Round Button Gull Wing 0.05A 12VDC 100000Cycles 2.55N SMD T/R
Online Components:
Switch Tactile N.O. SPST Round Button Gull Wing 0.05A 12VDC 100000Cycles 2.55N SMD T/R
Electro Sonic:
Switch Tactile N.O. SPST Round Button Gull Wing 0.05A 12VDC 100000Cycles 2.55N SMD T/R
电源电压DC 12.0 V
额定电压DC 12 V
额定电流 50 mA
绝缘电阻 100 MΩ
触点类型 SPST-NO
额定电流Max 0.05 A
额定电压 50 V
安装方式 Surface Mount
封装 SMD
长度 6 mm
宽度 6 mm
高度 3.6 mm
封装 SMD
颜色 Ivory
触点材质 Silver
工作温度 -20℃ ~ 70℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Audio, Computers & Computer Peripherals, Communications & Networking, Medical, Consumer Electronics,
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
