TLC339CN

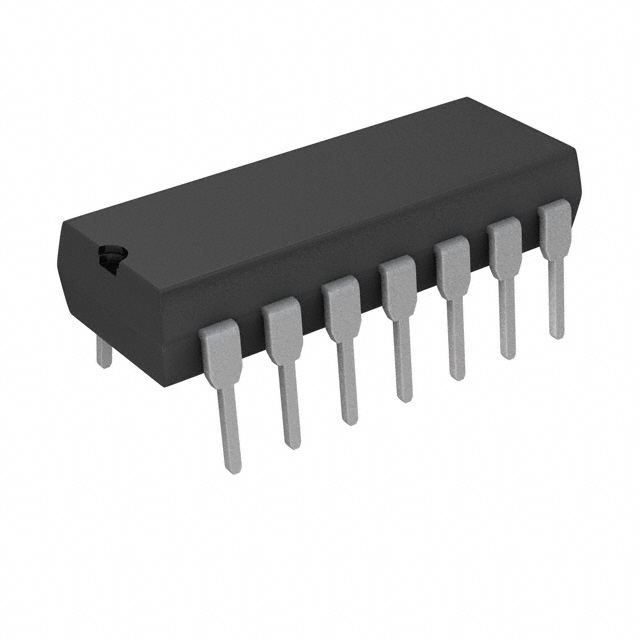

TEXAS INSTRUMENTS  TLC339CN  模拟比较器, 微功率, 4, 2.5 µs, 3V 至 16V, DIP, 14 引脚

description

The TLC139/TLC339 consists of four independent differential-voltage comparators designed to operate from a single supply. It is functionally similar to the LM139/LM339 family but uses 1/20th the power for similar response times. The open-drain MOS output stage interfaces to a variety of leads and supplies, as well as wired logic functions. For a similar device with a push-pull output configuration, see the TLC3704 data sheet.

Very Low Power...200 µW Typ at 5 V

Fast Response Time. . . 2.5 µs Typ With 5-mV Overdrive

Single Supply Operation:

TLC139M...4 V to 16 V

TLC339M...4 V to 16 V

TLC339C...3 V to 16 V

TLC339I...3 V to 16 V

High Input Impedance...1012Ω Typ

Input Offset Voltage Change at Worst Case Input at Condition Typically 0.23 µV/Month Including the First 30 Days

On-Chip ESD Protection
