TPSB476K010R0250

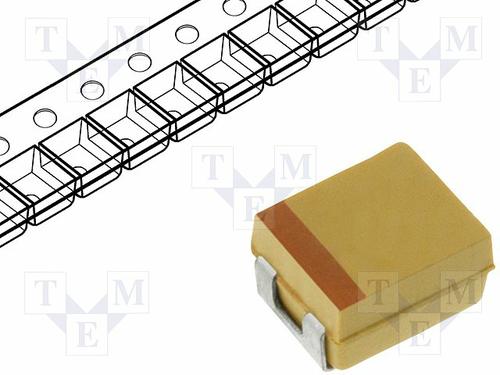

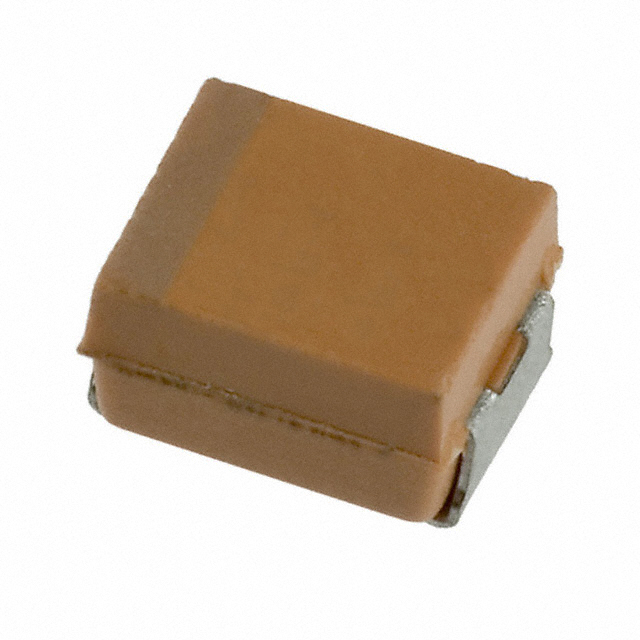

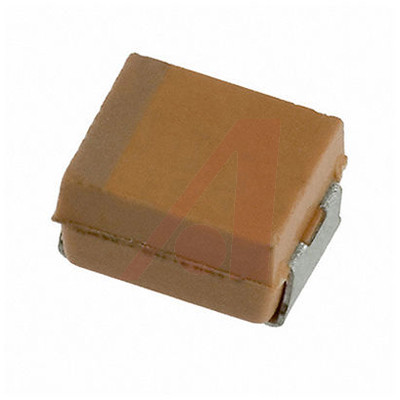

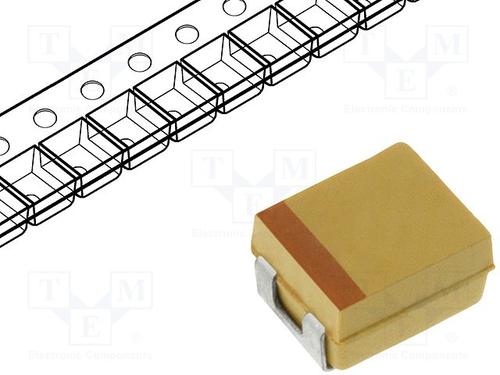

AVX  TPSB476K010R0250  表面贴装钽电容, TPS系列, 47 µF, ± 10%, 10 V, 1411 [3528 公制], B

TPS surface mount products have inherently low ESR equivalent series resistance and are capable of higher ripple current handling, producing lower ripple voltages, less power and heat dissipation than standard product for the most efficient use of circuit power.

得捷:
CAP TANT 47UF 10% 10V 1411

欧时:
Tantalum Capacitor 1210 47uF 10Vdc 10%

e络盟:
AVX  TPSB476K010R0250  表面贴装钽电容, TPS系列, 47 µF, ± 10%, 10 V, 1411 [3528 公制], B

艾睿:
Cap Tant Solid 47uF 10V B CASE 10% 3.5 X 2.8 X 1.9mm Inward L SMD 3528-21 0.25 Ohm 125°C T/R

Allied Electronics:
Capacitor; Tantalum; Cap 47 uF; Tol 10%; Vol-Rtg 10 VDC; SMT; 3528; ESR 250 mOhms; CT

安富利:
With an ESR as low as 80mΩ, TPS capacitors are suitable for smoothing and filtering on 3.3V power rails, which is a favorite output voltage of DC/DC converters. Devices with high capacitance can also be used as battery support in handheld devices where small size is one of the key design requirements.TPS tantalum capacitors have a maximum direct leakage current of 19.8μA and a maximum dissipation factor at 120Hz of 12%. Operating temperature range is -55 to +125°C. Importantly, these devices meet the requirements of AEC-Q200 for the automotive industry.

TME:
Capacitor: tantalum; low ESR; 47uF; 10VDC; Case: B; 1210; ESR:250mΩ

Verical:
Cap Tant Solid 47uF 10V B CASE 10% 3.5 X 2.8 X 1.9mm Inward L SMD 3528-21 0.25 Ohm 125C T/R

Newark:
# AVX  TPSB476K010R0250  Surface Mount Tantalum Capacitor, 47 µF, 10 V, TPS Series, ± 10%, 1411 [3528 Metric]

儒卓力:
**TC 47uF 10V 10% Case B 250mOhm **

Win Source:
CAP TANT 47UF 10% 10V 1411 / 47 µF Molded Tantalum Capacitors 10 V 1411 3528 Metric, 1210 250mOhm
