TLV3011AMDBVREP

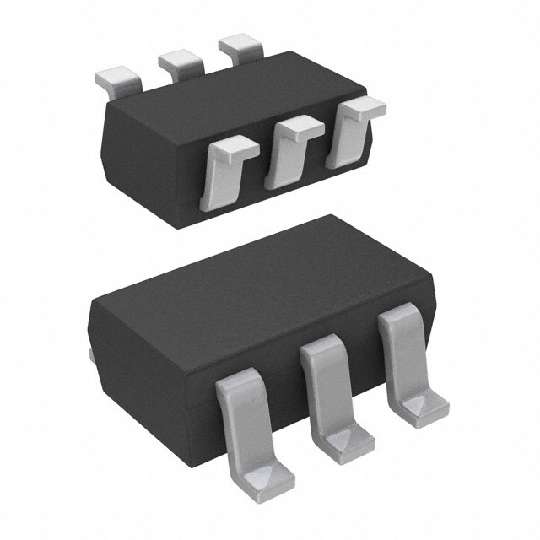

TEXAS INSTRUMENTS  TLV3011AMDBVREP  模拟比较器, 单路, 低功耗, 1, 6 µs, 1.8V 至 5.5V, SOT-23, 6 引脚

The is an enhanced product nano-power Sot23 Comparator with voltage reference. The device features an uncommitted on-chip voltage reference, has 5µA maximum quiescent current, input common-mode range 200mV beyond the supply rails and single-supply operation from 1.8 to 5.5V. The integrated 1.242-V series voltage reference offers low 100ppm/°C maximum drift, is stable with up to 10nF capacitive load and can provide up to 0.5mA typical of output current. The device is specified for the temperature range of -55 to 125°C.

.

Controlled baseline - Assembly/test site and fabrication site

.

Enhanced diminishing manufacturing sources DMS support

.

Enhanced product-change notification

.

Input common-mode range - 200mV Beyond rails

.

1% Voltage reference initial accuracy

.

Open-drain logic compatible output

.

Fast response time - 6µs Propagation delay with 100mV overdrive

.

Green product and no Sb/Br
