TVX1H470MAD1LS

Cap Aluminum Lytic 47uF 50V 20% 8 X 16mm Axial 160mA 2000H 85℃ T/R

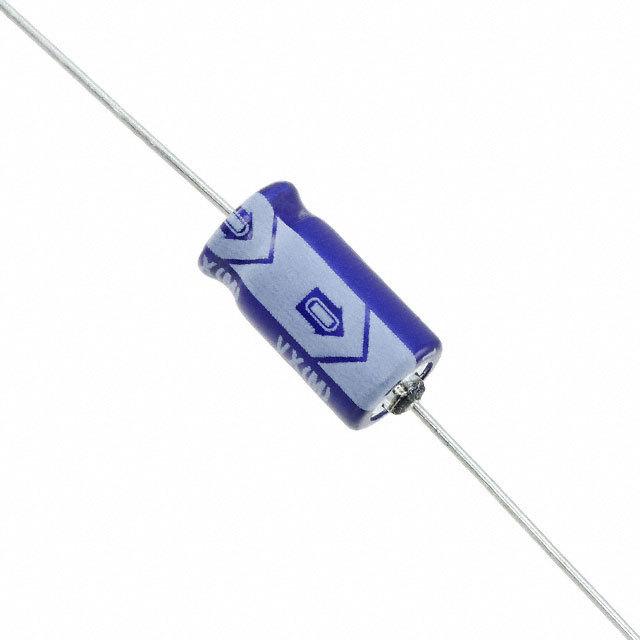

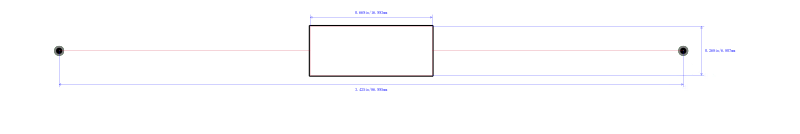

This electrolytic aluminum capacitor from has an anode consisting of pure aluminum foil and is used to filter lower frequencies. It can withstand a voltage of 50 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 85 °C. It has a tolerance of 20%. This part has a lead diameter of 0.6 mm. Its leakage current is 4@1Min|3@2Min μA. Its capacitance value is 47uF. This product is 16 mm long with a diameter of 8 mm. The TVX1H470MAD1LS aluminum electrolytic capacitor has an axial termination style.
