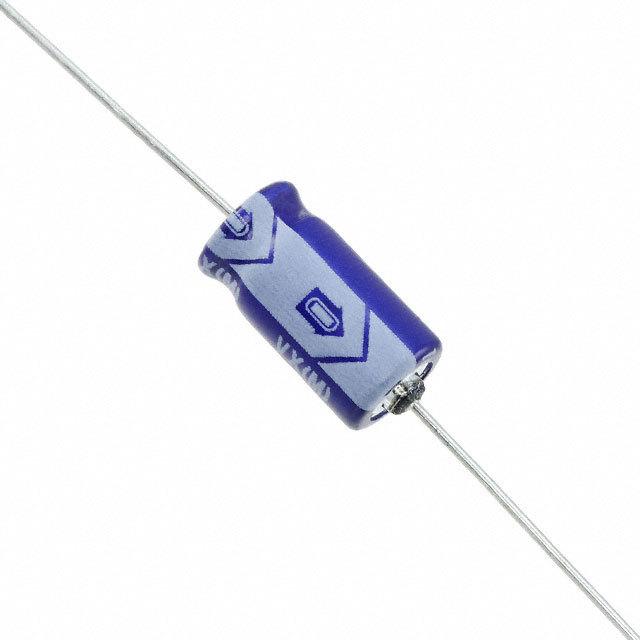

VX 系列 100 uF 25 V 20 % 通孔 轴向 铝电解电容
Using the aluminum anode based electrolytic electrolytic capacitor, developed by , you can filter out lower signal frequencies. It can withstand a voltage of 25 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 85 °C. Its capacitance value is 100uF. Its leakage current is 4@1Min|3@2Min μA. This product is 16 mm long with a diameter of 6.3 mm. This part has a lead diameter of 0.6 mm. The TVX1E101MAD1LS aluminum electrolytic capacitor has an axial termination style. It has a tolerance of 20%.
额定电压DC 25.0 V
电容 100 µF
容差 ±20 %
纹波电流 170 mA
纹波电流高频 170mA @120Hz
纹波电流低频 255mA @10kHz
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压 25 V
安装方式 Through Hole
引脚数 2
封装 6.3 mm
高度 16 mm
直径 6.30 mm
封装 6.3 mm
介质材料 Aluminum Electrolytic
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
寿命（小时） 2000 h
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
TVX1E101MAD1LS Nichicon 尼吉康 | 当前型号 | 当前型号 |
516D107M025LM7BE3 Vishay Sprague | 类似代替 | TVX1E101MAD1LS和516D107M025LM7BE3的区别 |
TVX1E101MAD 尼吉康 | 功能相似 | TVX1E101MAD1LS和TVX1E101MAD的区别 |
516D107M025LM6AE3 Vishay Sprague | 功能相似 | TVX1E101MAD1LS和516D107M025LM6AE3的区别 |
