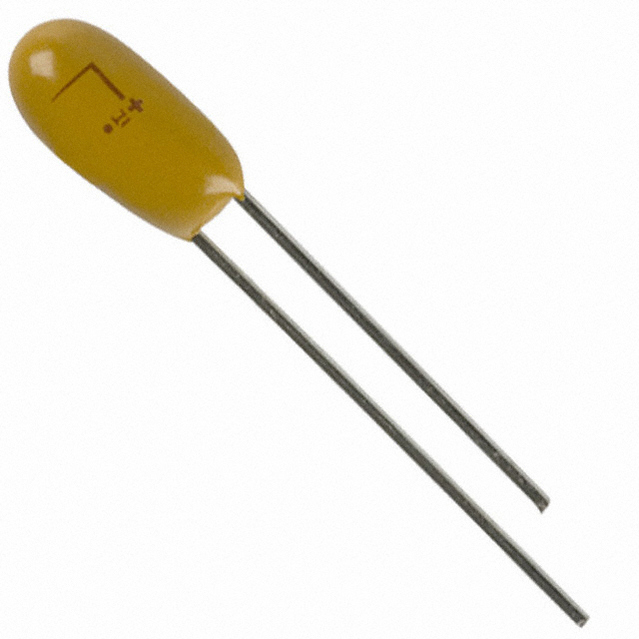

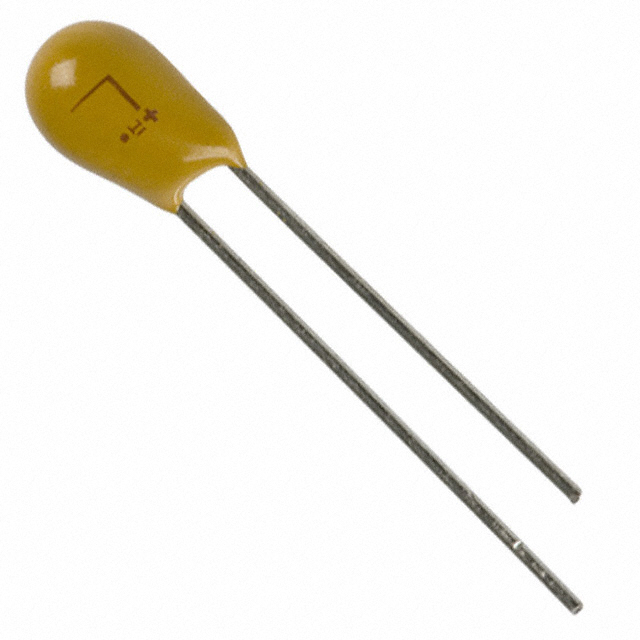

AVX TAP225K050SCS 钽电容, 2.2uF, 50V, 3.5Ω, 径向引线
The low leakage current characteristic of this solid tantalum capacitor from makes it suitable for sample and hold circuit applications. Users like its straight wire form. It can withstand a voltage of 50 VDC. This part has a pitch of 2.5 mm. Its leakage current is 0.8 μA. This solid capacitor has a maximum operating temperature of 125 °C. Its capacitance value is 2.2uF. This product is 9Max mm tall with a diameter of 5.5Max mm. The TAP225K050SCS solid capacitor has a radial termination style. It has a tolerance of 10%.
额定电压DC 50.0 V
工作电压 50 VDC
电容 2.2 µF
等效串联电阻ESR 3.5 Ω
容差 ±10 %
工作温度Max 85 ℃
工作温度Min -55 ℃
额定电压 50 V
安装方式 Through Hole
引脚间距 2.5 mm
高度 9 mm
直径 5.59 mm
引脚间距 2.5 mm
介质材料 Tantalum
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
TAP225K050SCS AVX 艾维克斯 | 当前型号 | 当前型号 |
TAP225K050DCS 艾维克斯 | 完全替代 | TAP225K050SCS和TAP225K050DCS的区别 |
TAP225K035SCS 艾维克斯 | 功能相似 | TAP225K050SCS和TAP225K035SCS的区别 |
TAP225K016SCS 艾维克斯 | 功能相似 | TAP225K050SCS和TAP225K016SCS的区别 |
