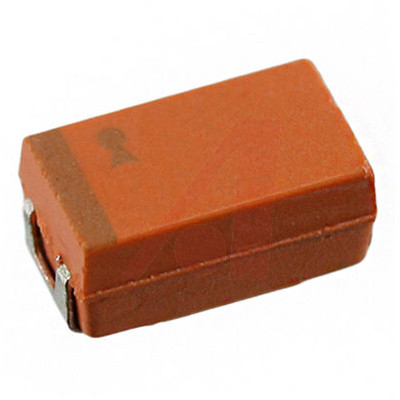

AVX TPSC106M025R0500 表面贴装钽电容, TPS系列, 10 µF, ± 20%, 25 V, 2312 [6032 公制], C
TPS surface mount products have inherently low ESR equivalent series resistance and are capable of higher ripple current handling, producing lower ripple voltages, less power and heat dissipation than standard product for the most efficient use of circuit power.
欧时:
Tantalum Capacitor 2312 10uF 25Vdc 20%
贸泽:
Tantalum Capacitors - Solid SMD 10uF 25V 20% L ESR
艾睿:
This TPSC106M025R0500 solid tantalum capacitor from AVX utilizes a three-layer conductor-dielectric-conductor capacitor structure. It can withstand a voltage of 25 VDC. This solid capacitor has a maximum operating temperature of 125 °C. Its leakage current is 2.5 μA. It has a tolerance of 20%. Its capacitance value is 10uF. This product is 6 mm long, 2.6 mm tall and 3.2 mm deep.
Allied Electronics:
Capacitor; Tantalum; Cap 10 uF; Tol 20%; Vol-Rtg 25 VDC; SMT; 6032; ESR 500 mOhms; CT
安富利:
Cap Tant Solid 10uF 25V C CASE 20% 6 X 3.2 X 2.6mm SMD 6032-28 0.5 Ohm 125°C T/R
Verical:
Cap Tant Solid 10uF 25V C CASE 20% 6 X 3.2 X 2.6mm Inward L SMD 6032-28 0.5 Ohm 125C T/R
Newark:
# AVX TPSC106M025R0500 Surface Mount Tantalum Capacitor, 10 µF, 25 V, TPS Series, ± 20%, 2312 [6032 Metric]
Win Source:
10μF Molded Tantalum Capacitors 25V 2312 6032 Metric 500 mOhm 0.236" L x 0.126" W 6.00mm x 3.20mm
额定电压DC 25.0 V
电容 10 µF
等效串联电阻ESR 500 mΩ
容差 ±20 %
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 25 V
安装方式 Surface Mount
引脚数 2
封装公制 6032-28
封装 6032
长度 6 mm
宽度 3.2 mm
高度 2.6 mm
封装公制 6032-28
封装 6032
介质材料 Tantalum
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 500
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPSC106M025R0500 AVX 艾维克斯 | 当前型号 | 当前型号 |
TPSC106M025S0500 艾维克斯 | 完全替代 | TPSC106M025R0500和TPSC106M025S0500的区别 |
TPSC106M025Y0500 艾维克斯 | 完全替代 | TPSC106M025R0500和TPSC106M025Y0500的区别 |
TPSC106K025R0500 艾维克斯 | 类似代替 | TPSC106M025R0500和TPSC106K025R0500的区别 |
